- SURGICAL LIGHTS
SURGICAL LIGHTS
-
-
LUVIS M210
VERSATILE SURGICAL LIGHTS FOR DIVERSE PROCEDURES
LUVIS M210 provides precise, efficient lighting for diverse surgical needs.
Intuitive touch control and three-step color temperature ensure optimal visibility, while the autoclavable handle supports safe, eco-friendly use.
One-click Endo Mode delivers ideal illumination for endoscopic procedures.
Illumination Intensity
Max. 120,000lx
Light Field Diameter
6 steps adjustment
(20-30cm)
Color Temperature
3,800K/4,300K/4,800K
ENDO Mode
Suitable for endo-surgery
by one click, Ec*5%
Key Features
-

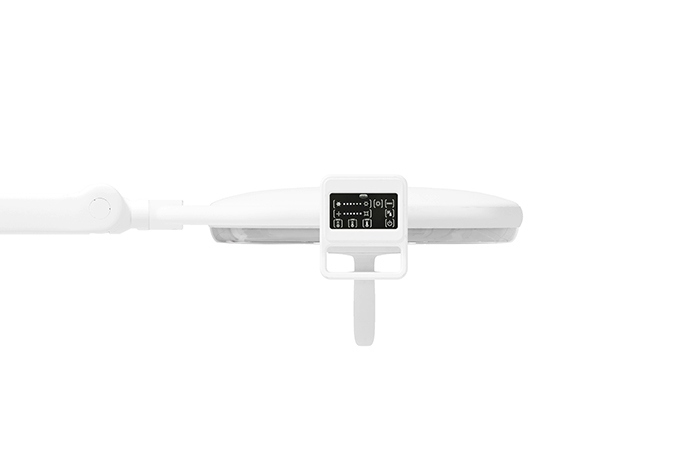

- INTUITIVE TOUCH CONTROL
- Responsive touch interface enables quick and precise adjustments, ensuring ease of use and improved workflow efficiency
-
- AUTOCLAVABLE AND REUSABLE HANDLE
- Sterilizable and reusable handle ensures safety and supports eco-friendly practices
-
- ENDO MODE FUNCTION
- One-click endo mode reduces illumination (Ec*5%), providing an ideal environment for endoscopic surgeries with enhanced efficiency
-
- THREE-STEP COLOR TEMPERATURE CONTROL
- Adjustable color temperature in three levels allows optimal lighting for different surgical needs, ensuring clear and accurate visibility
Install Type

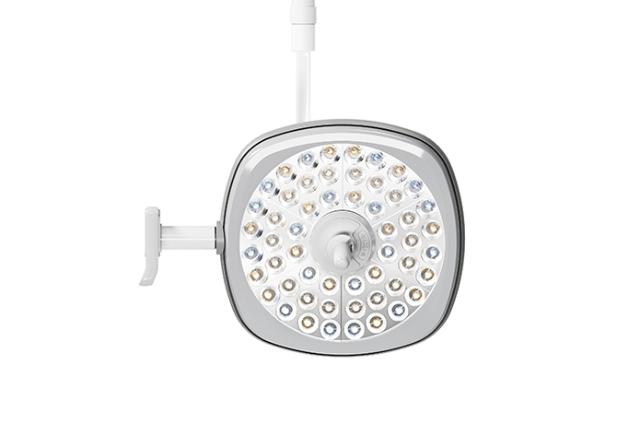

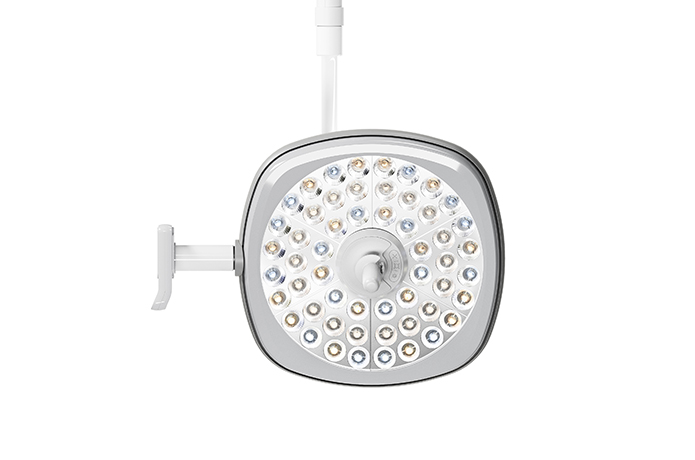

Single Ceiling Mounted Surgical Light

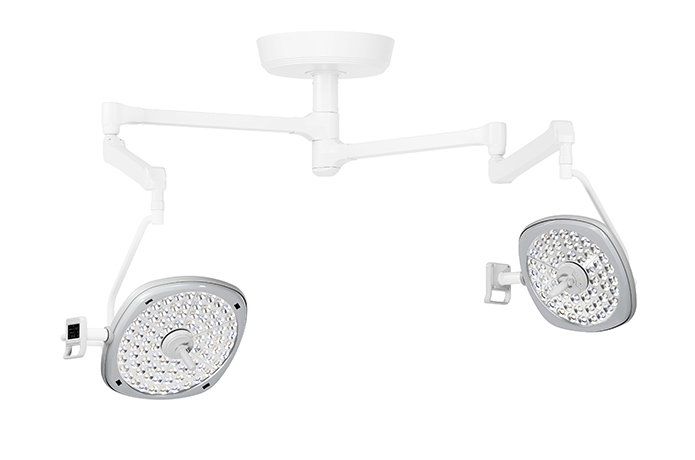

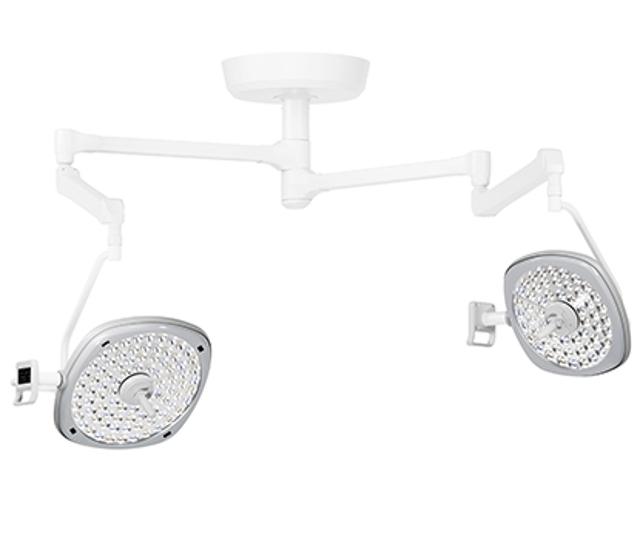

Dual Ceiling Mounted Surgical Light
Mobile Surgical Light
Key Specifications
| Contents | Description |
|---|---|
| No. of LED (ea) | 54 |
| Central Illumination Ec (lx) | 120,000 |
| Electronic Adjustment Range (%) | 30-100 |
| Endo Mode (Illumination, lx) | 6,000 |
| Color Temperature (K) | 3,800/4,300/4,800 |
| Color Rendering Index (Ra/R9/R13) | 95/90/95 |
| Light Field Diameter (d10, cm) | 20-30 |
| Light Field Diameter (d50, cm) | 12-18 |
| Depth of Illumination at 60% (cm) | 65 |
| Life Span (Hr) | 60,000 |

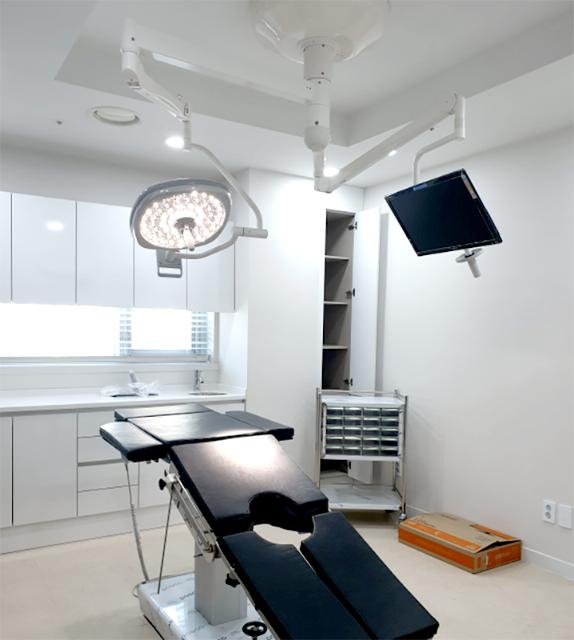

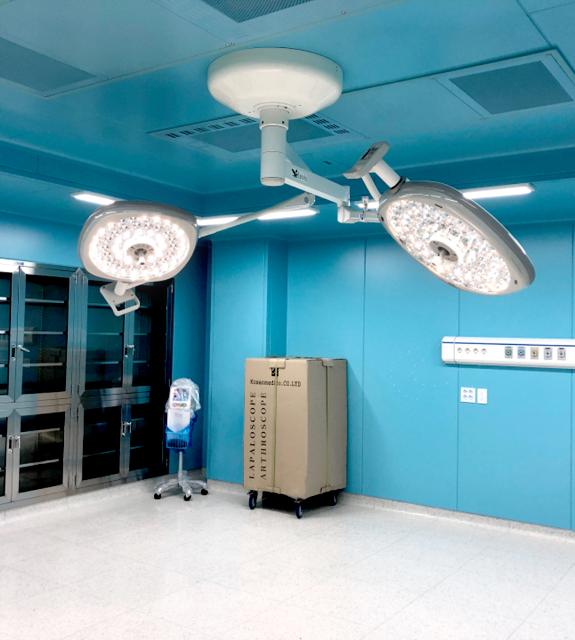

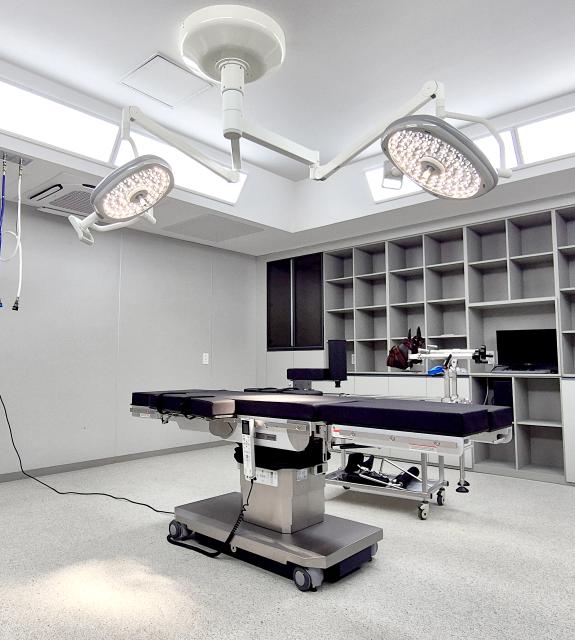

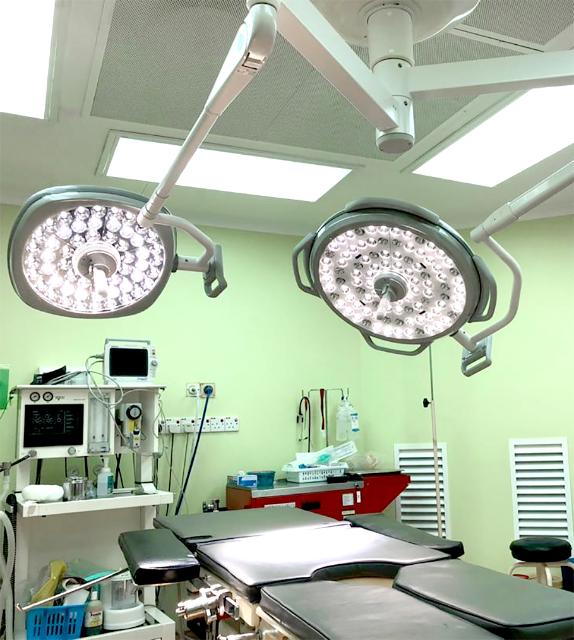

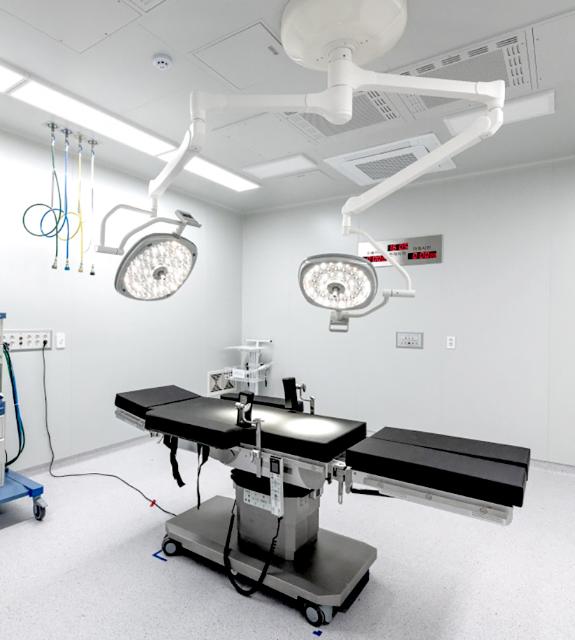

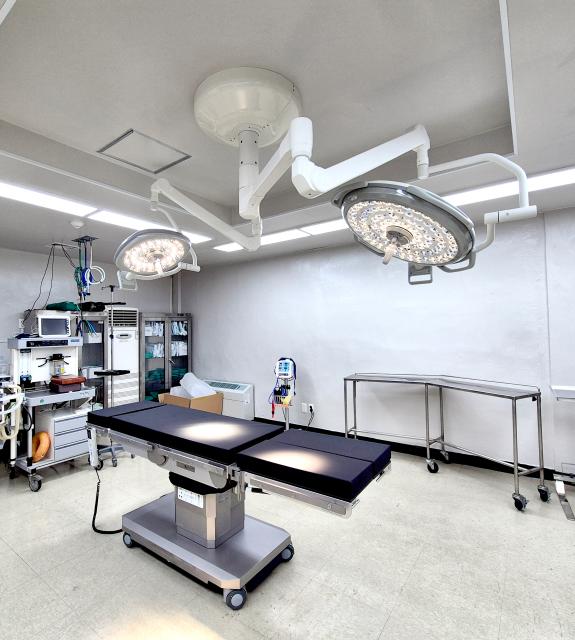

Installation Cases
Certifications & Approvals
Certifications (Awards)
Approvals
-
UL
-
ISO 13485
-
IEC 60601-1
-
IEC 60601-1-2
-
IEC 60601-2-41
