SURGICAL LIGHTS
-
-
LUVIS L400
ADVANCED & PREMIUM SURGICAL LIGHTS
FOR MODERN OPERATING ROOMSLUVIS L400 is built for advanced surgeries, featuring multi-interface control and smart sensor lighting for consistent, shadowless illumination.
Optional 4K and Full-HD camera integration enhances real-time monitoring, while dual-light control ensures efficiency and seamless performance.
Illumination Intensity
Continuous adjustment
(Max. 160,000lx)
Light Field Diameter
Continuous adjustment
18-34cm
Color Temperature
Continuous adjustment
3,600K-5,400K
Color Rendering Index
Ra 99/R9 99/R13 99
Smart Sensors
Enhancement of shadow dilution
& depth of illumination
ENDO Mode
Suitable for endo-surgery
by one click, Ec*1-10%
Synchronized Control
One controller can control the other at the same time
Key Features
-

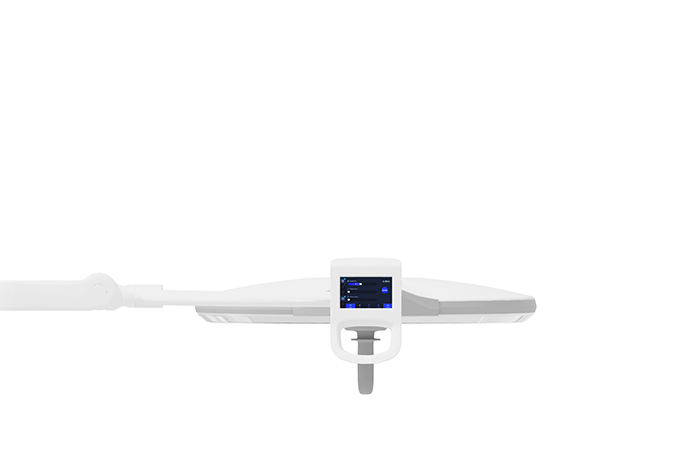

- MULTI-INTERFACE CONTROL SYSTEM
- Four control options for enhanced usability and flexibility
-
- SMART SENSOR PRECISION LIGHTING
- Smart sensors maintain consistent illuminance and shadowless effect, while high depth performance ensures clear visibility in deep surgical fields
-

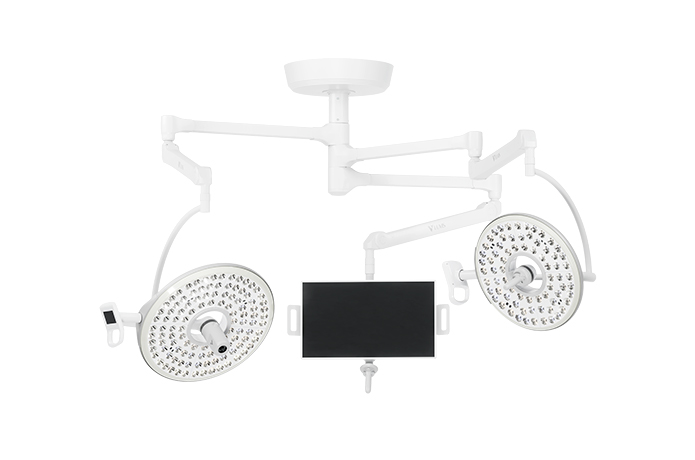

- HIGH-RESOLUTION CAMERA INTEGRATION
- Supports optional 4K or Full-HD camera for live surgery, real-time viewing, and recording
LUVIS 4K CAMERA
A wireless system with 360° rotation, multi-angle recording, and real-time monitoring. Designed for seamless integration and easy sharing to enhance surgical efficiency
-
- SYNCHRONIZED CONTROL
- Enables two lights to be controlled simultaneously, providing greater efficiency and convenience in the surgical environment
Install Type

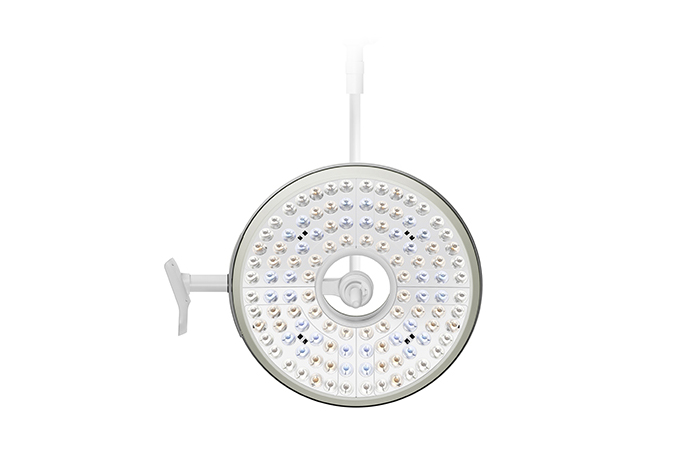

Single Ceiling Mounted Surgical Light

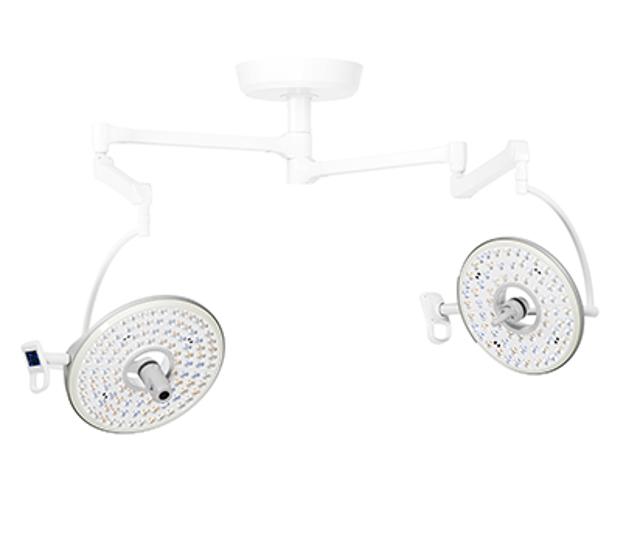

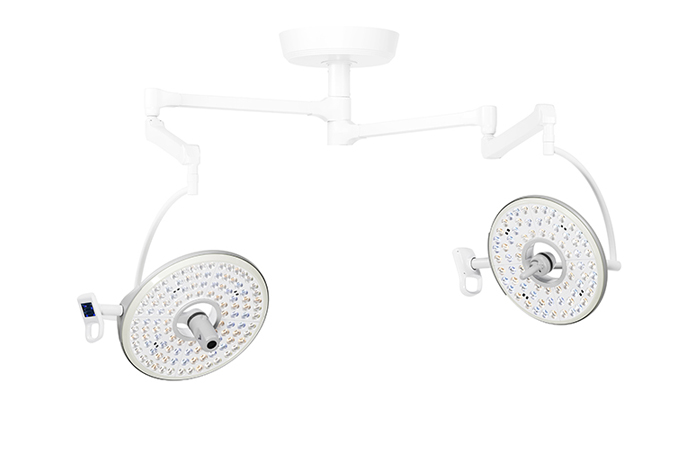

Dual Ceiling Mounted Surgical Light
Mobile Surgical Light
Key Specifications
| Contents | Description |
|---|---|
| No. of LED (ea) | 112 |
| Central Illumination Ec (lx) | 160,000 |
| Electronic Adjustment Range (%) | 10-100 (continuous) |
| Endo Mode (Illumination, lx) | 1,600-16,000 (1-10% continuous) |
| Color Temperature (K) | 3,600-5,400 (continuous) |
| Color Rendering Index (Ra/R9/R13) | 99/99/99 |
| Light Field Diameter (d10, cm) | 18-34 (continuous) |
| Light Field Diameter (d50, cm) | 10-19 |
| Depth of Illumination at 60% (cm) | 85 |
| Life Span (Hr) | 60,000 |

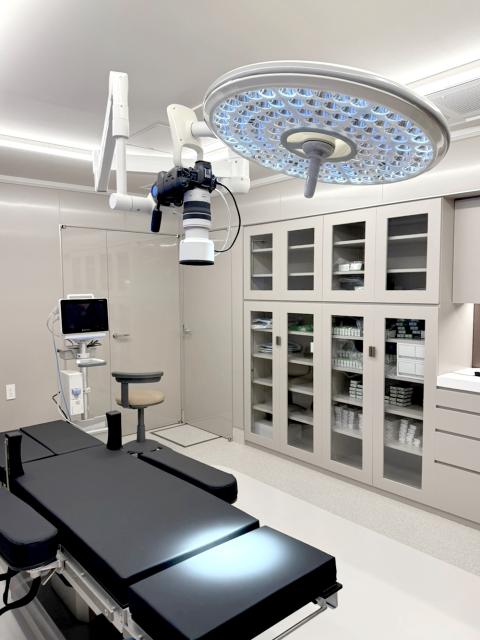

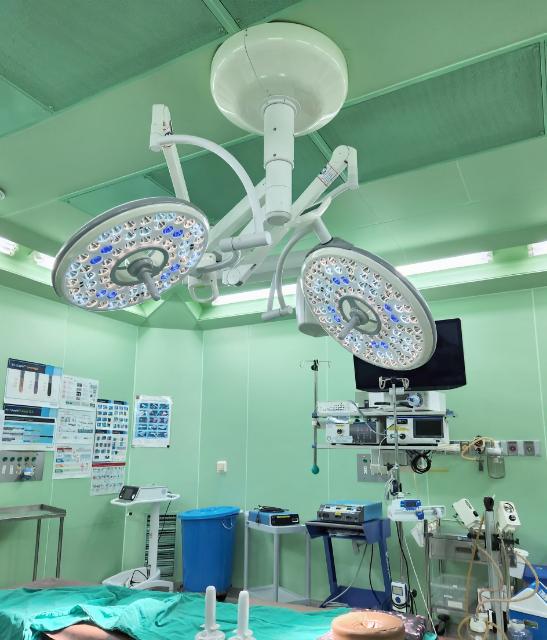

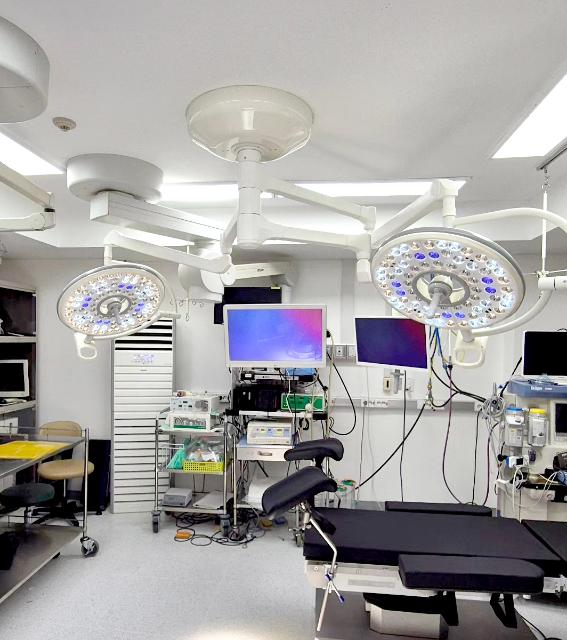

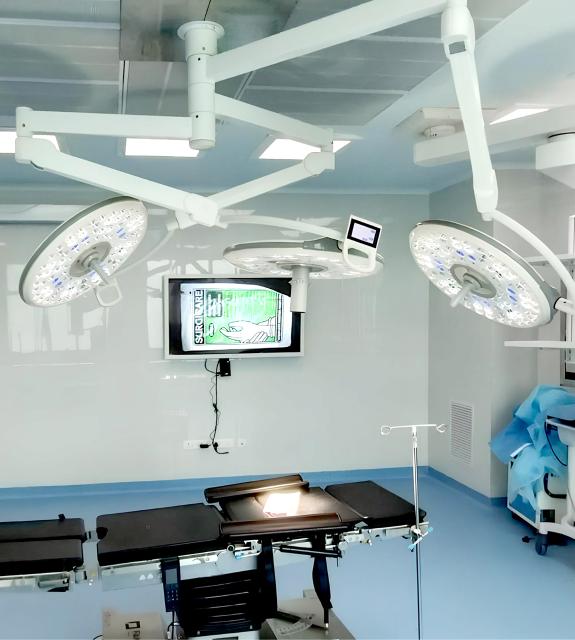

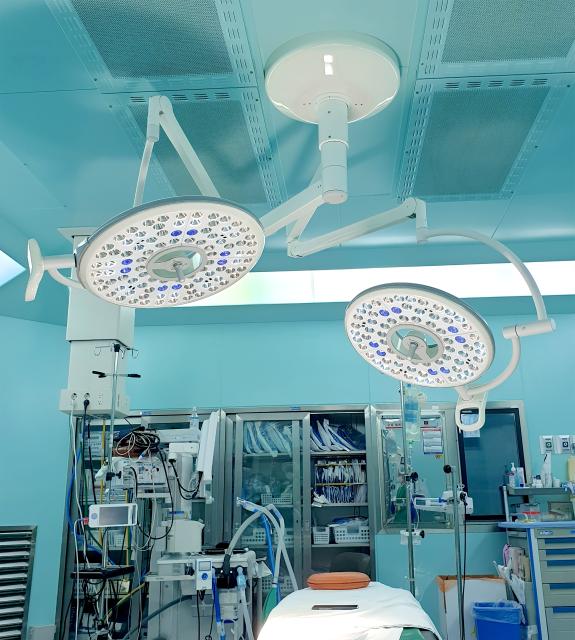

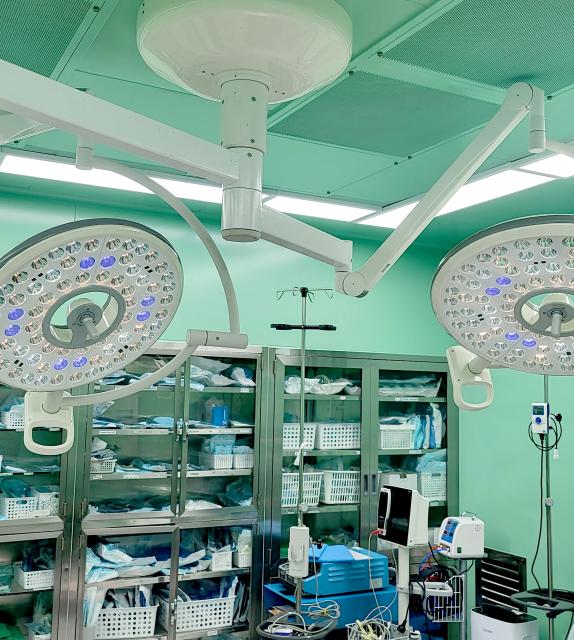

Installation Cases
Certifications & Approvals
Certifications (Awards)
Approvals
-
UL
-
ISO 13485
-
IEC 60601-1
-
IEC 60601-1-2
-
IEC 60601-2-41
