SURGICAL LIGHTS
-
-

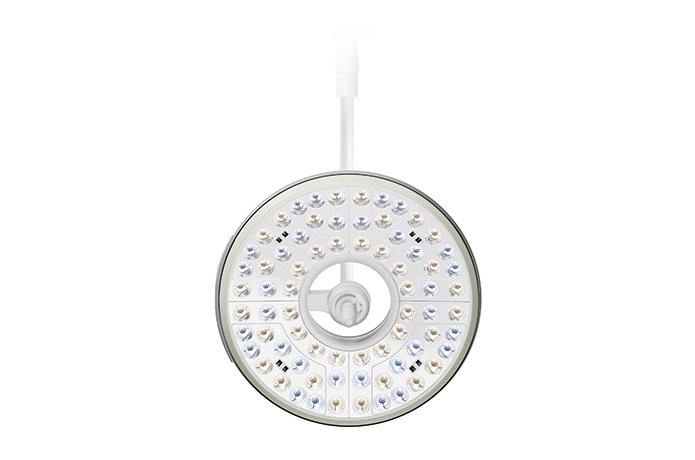

LUVIS M400
STREAMLINED & PREMIUM SURGICAL LIGHTS FOR MODERN OPERATING ROOMS
LUVIS M400 delivers premium lighting in a streamlined design, combining smart sensor illumination with optional 4K and Full-HD camera support.
With synchronized dual-light control, it offers reliable performance and workflow efficiency in modern operating rooms.
Illumination Intensity
Continuous adjustment
(Max. 140,000lx)
Light Field Diameter
Continuous adjustment
18-30cm
Color Temperature
Continuous adjustment
3,600K-5,400K
Color Rendering Index
Ra 99/R9 99/R13 99
Smart Sensors
Enhancement of shadow dilution
& depth of illumination
ENDO Mode
Suitable for endo-surgery
by one click, Ec*1-10%
Synchronized Control
One controller can control the other at the same time
Key Features
-

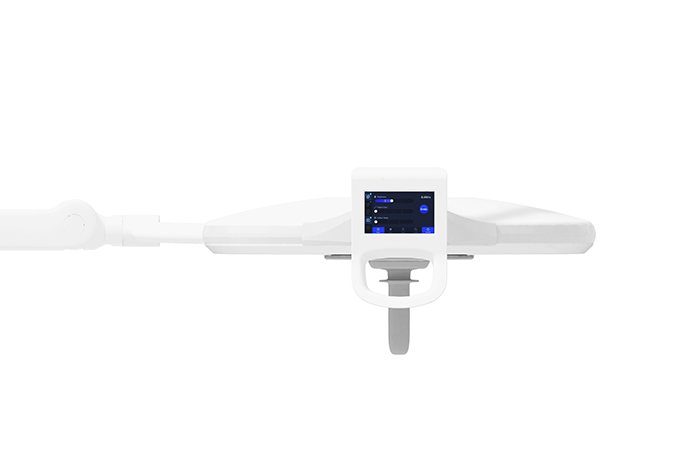

- MULTI-INTERFACE CONTROL SYSTEM
- Four control options for enhanced usability and flexibility
-
- SMART SENSOR PRECISION LIGHTING
- Smart sensors maintain consistent illuminance and shadowless effect, while high depth performance ensures clear visibility in deep surgical fields
-
- HIGH-RESOLUTION CAMERA INTEGRATION
- Supports optional 4K or Full-HD camera for live surgery, real-time viewing, and recording
LUVIS 4K CAMERA
A wireless system with 360° rotation, multi-angle recording, and real-time monitoring. Designed for seamless integration and easy sharing to enhance surgical efficiency
-
- SYNCHRONIZED CONTROL
- Enables two lights to be controlled simultaneously, providing greater efficiency and convenience in the surgical environment
Install Type

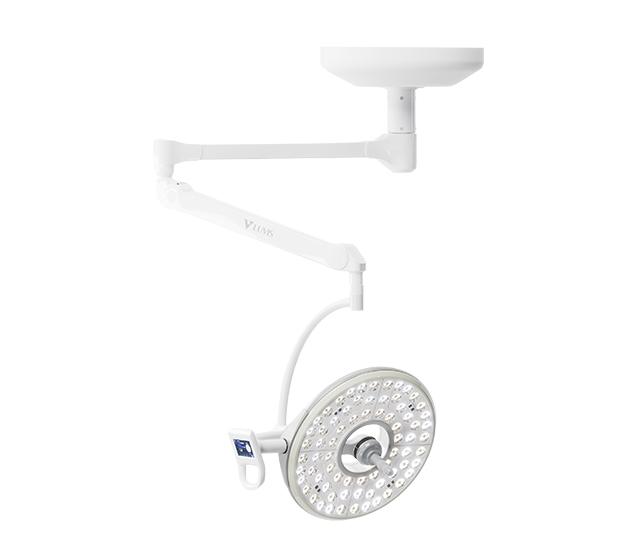

Single Ceiling Mounted Surgical Light

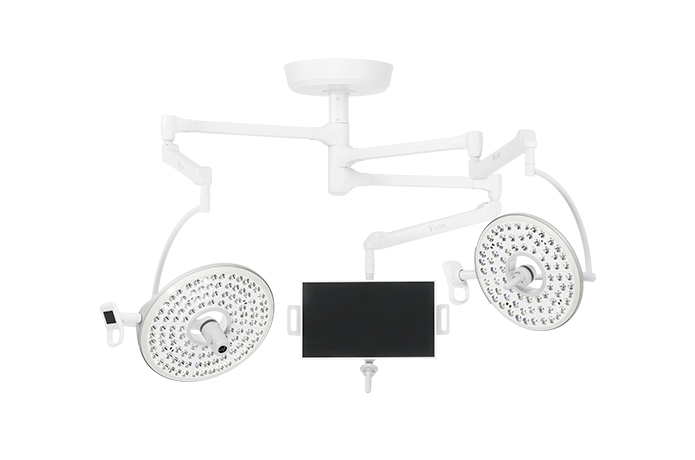

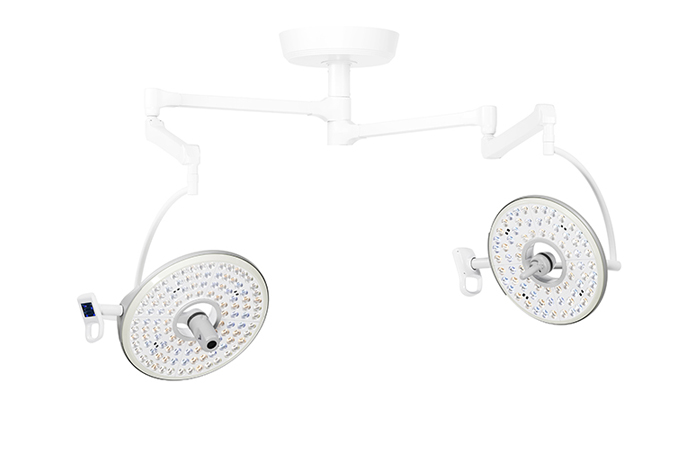

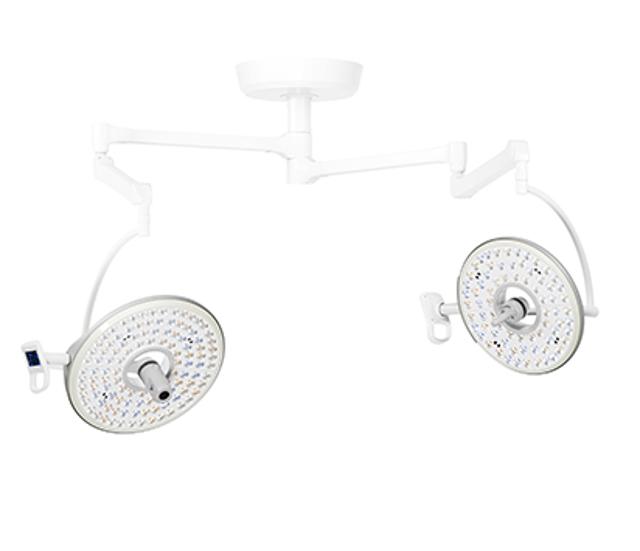

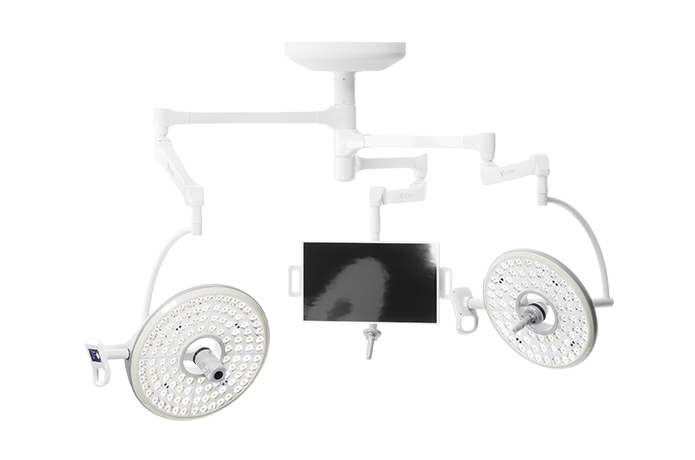

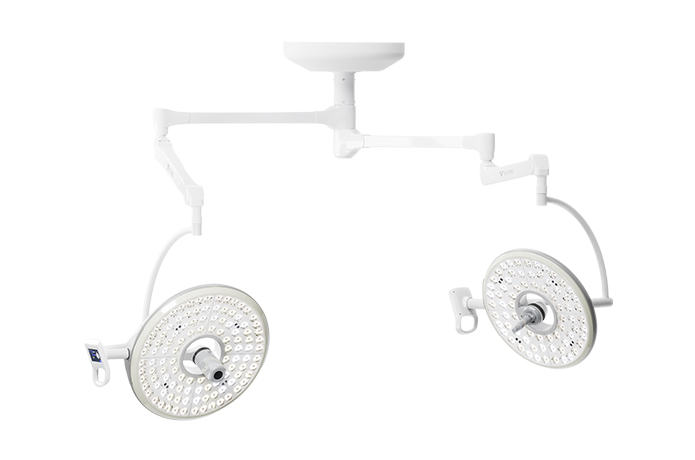

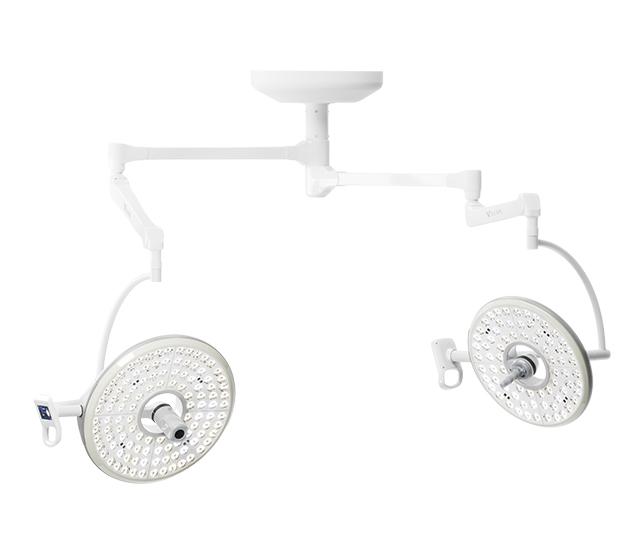

Dual Ceiling Mounted Surgical Light

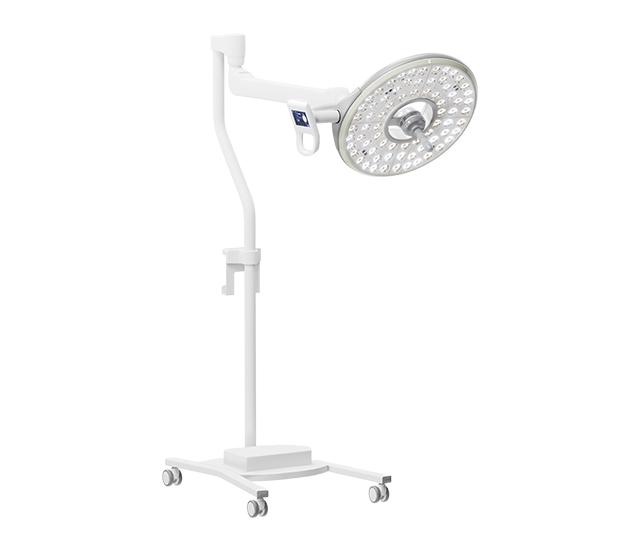

Mobile Surgical Light
Key Specifications
| Contents | Description |
|---|---|
| No. of LED (ea) | 72 |
| Central Illumination Ec (lx) | 140,000 |
| Electronic Adjustment Range (%) | 10-100 (continuous) |
| Endo Mode (Illumination, lx) | 1,400-14,000 (1-10% continuous) |
| Color Temperature (K) | 3,600-5,400 (continuous) |
| Color Rendering Index (Ra/R9/R13) | 99/99/99 |
| Light Field Diameter (d10, cm) | 18-30 (continuous) |
| Light Field Diameter (d50, cm) | 10-18 |
| Depth of Illumination at 60% (cm) | 80 |
| Life Span (Hr) | 60,000 |

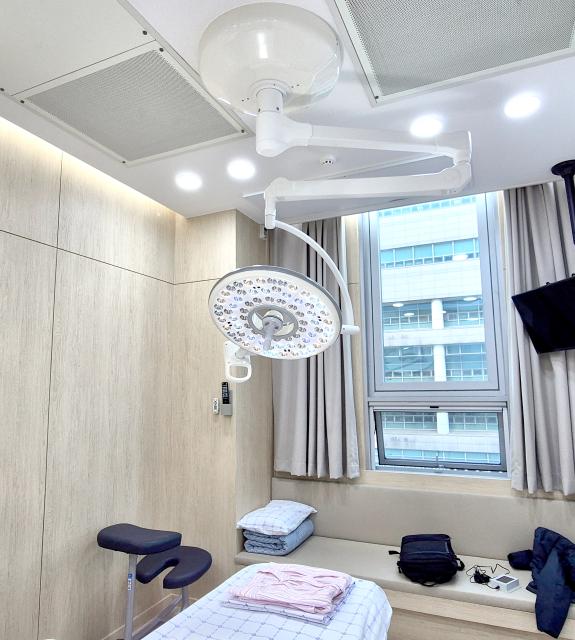

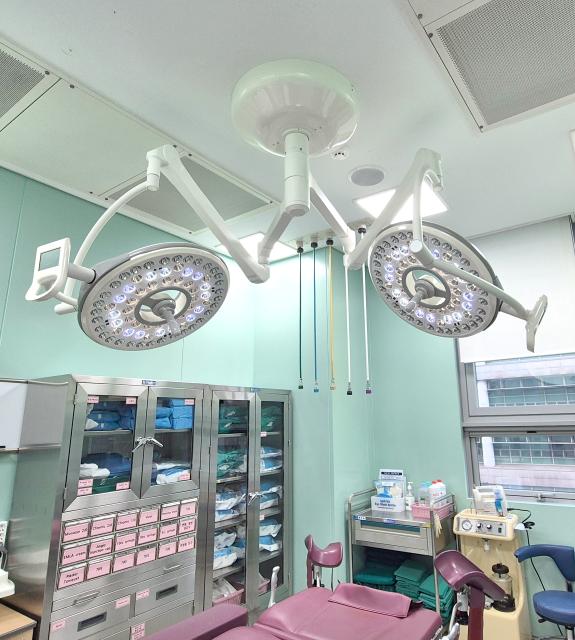

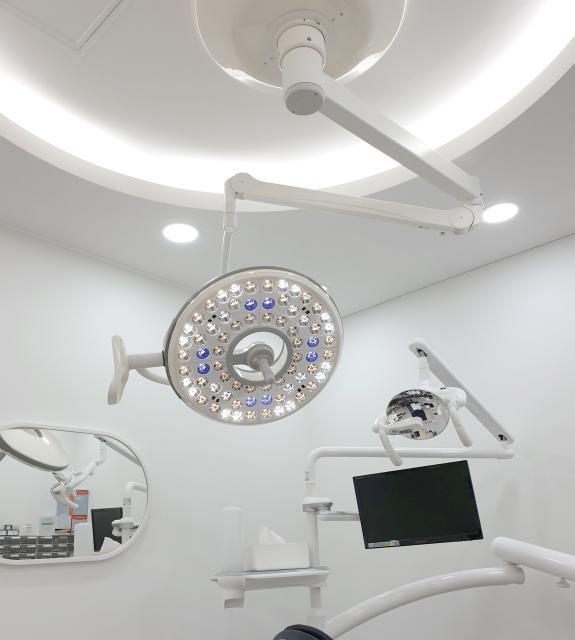

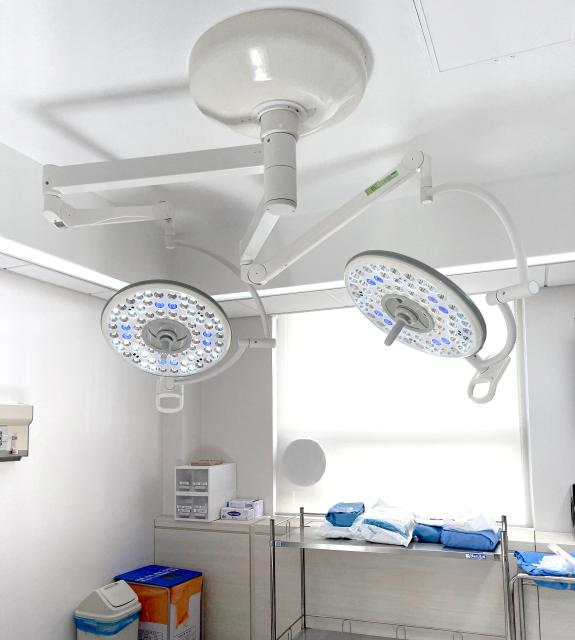

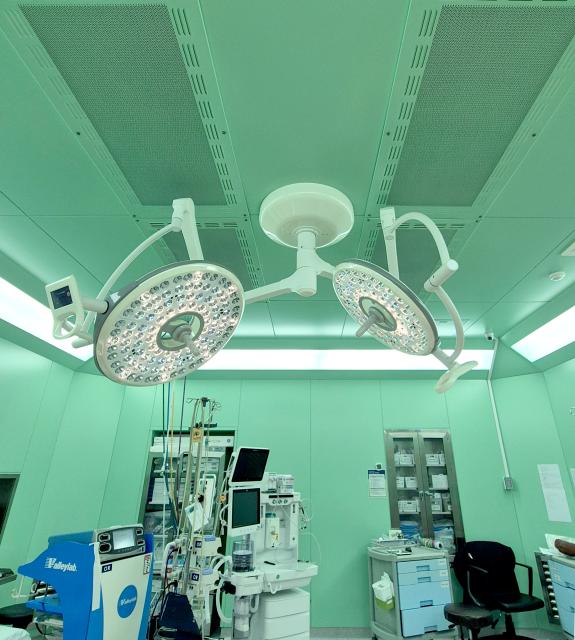

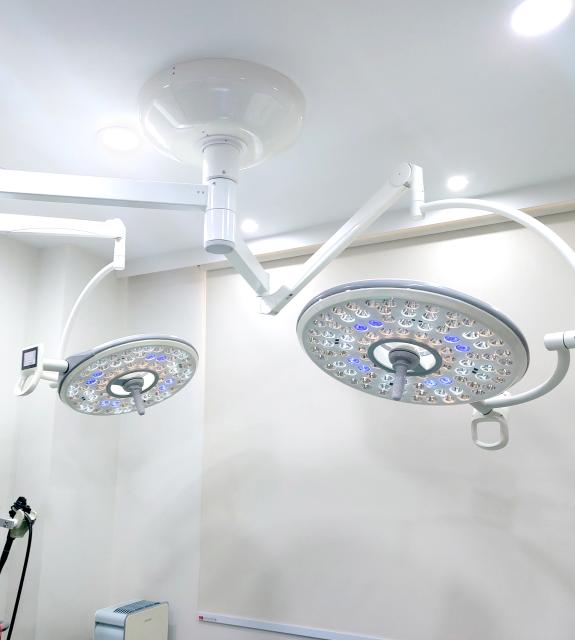

Installation Cases
Certifications & Approvals
Certifications (Awards)
Approvals
-
UL
-
ISO 13485
-
IEC 60601-1
-
IEC 60601-1-2
-
IEC 60601-2-41
