EXAMINATION LIGHTS
-
-
LUVIS S300
SMART & COMPACT EXAMINATION LIGHTS FOR EVERY CLINIC
LUVIS S300 is engineered to meet the needs of specialized operating rooms, offering superior illumination and ergonomic flexibility.
Its advanced optics ensure minimal shadow, while optional integrations such as FULL-HD camera and tablet PC support enhance surgical efficiency.
Illumination Intensity
3 Step adjustment
(Max. 130,000lx)
Light Field Diameter
3 Step adjustment
(15-25cm)
Color Temperature
3,800K/4,300K/4,800K
Color Rendering Index
Ra 98/R9 97
3 Different Modes
Surgical mode(130,000lx)
Examine mode(60,000lx)
Dental mode(30,000lx)
Key Features
-

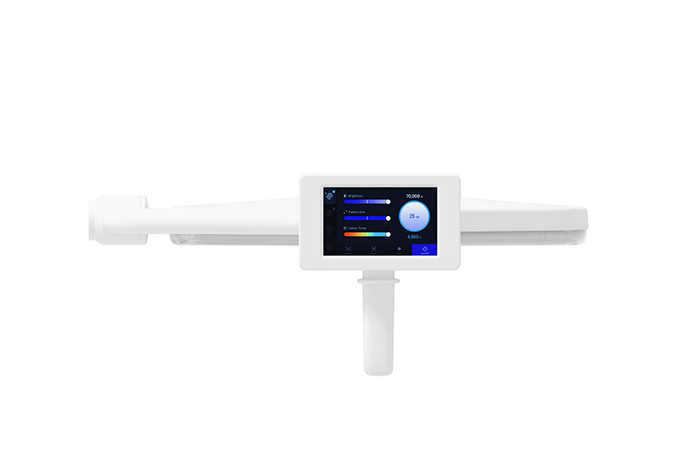

- MULTI-INTERFACE CONTROL SYSTEM
- Four control options for enhanced usability and flexibility
-
- FULL-HD CAMERA INTEGRATION
- Supports optional 4K or Full-HD camera for live surgery, real-time viewing, and recording
-
- SLIM AND AWARD-WINNING DESIGN
- Fits perfectly in any clinic with its sleek, flat profile—recognized for its outstanding aesthetics at global exhibitions
-
- SYNCHRONIZED CONTROL
- Enables two lights to be controlled simultaneously, providing greater efficiency and convenience in the surgical environment
Install Type

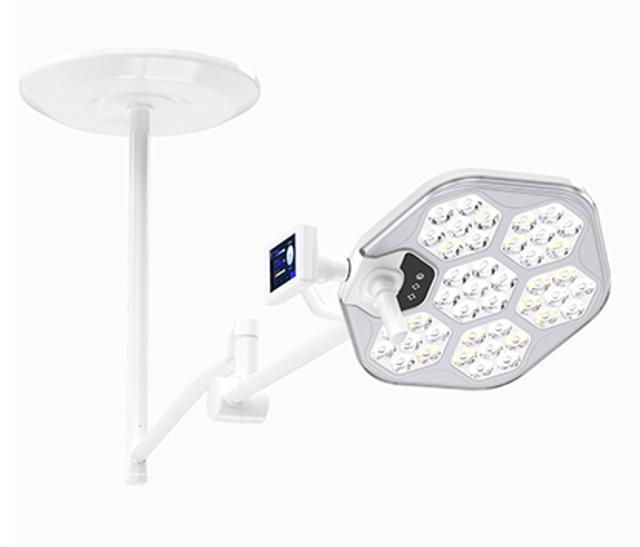

Single Ceiling Mounted Surgical Light

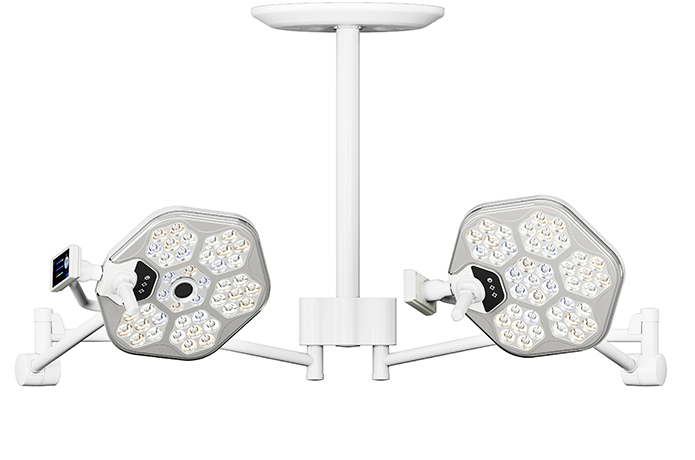

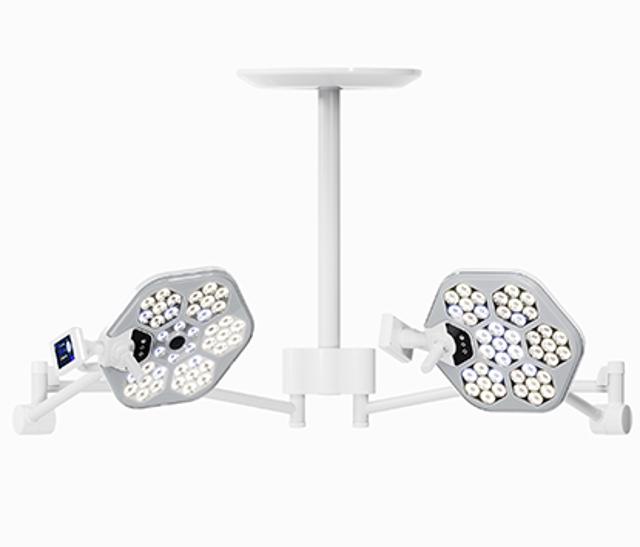

Dual Ceiling Mounted Surgical Light

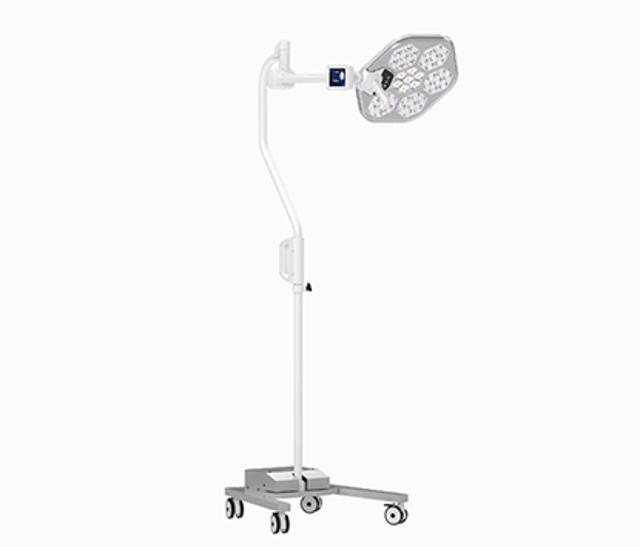

Mobile Surgical Light

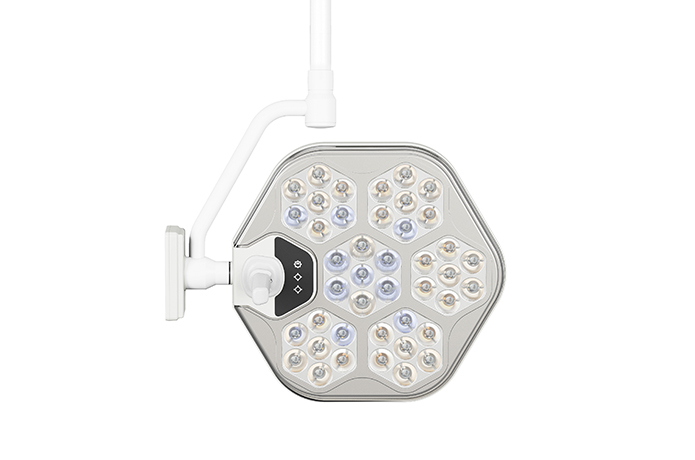

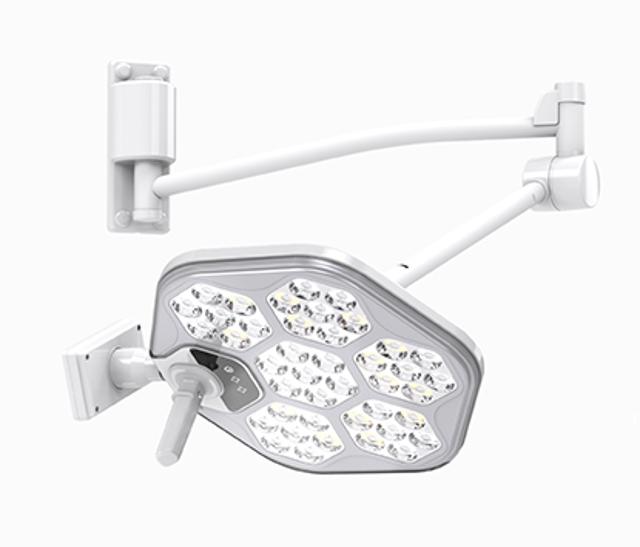

Wall Mounted Surgical Light

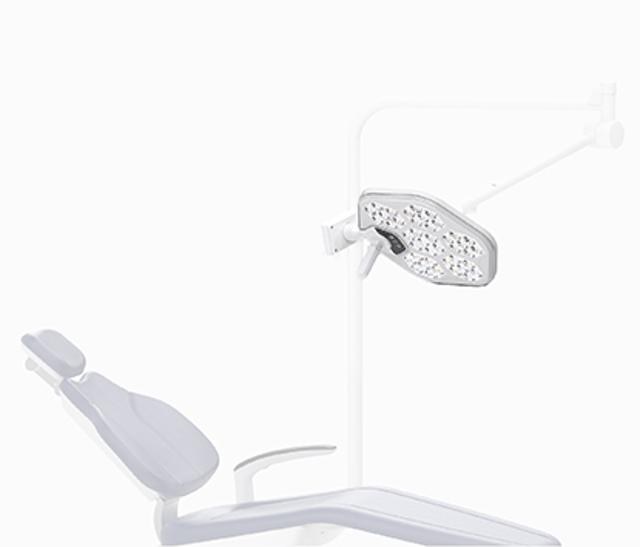

Chair Mounted Surgical Light
Key Specifications
| Contents | Description |
|---|---|
| No. of LED (ea) | S300 : 42 S300 CAM : 41 |
| Central Illumination Ec (lx) | 130,000 |
| Electronic Adjustment Range (%) | 40-100 |
| Color Temperature (K) | 3,800/4,300/4,800 |
| Color Rendering Index (Ra/R9/R13) | 98/97/99 |
| Light Field Diameter (d10, cm) | 15-25 |
| Light Field Diameter (d50, cm) | 9-15 |
| Depth of Illumination at 60% (cm) | S300 : 75 S300 CAM : 70 |
| Life Span (Hr) | 60,000 |

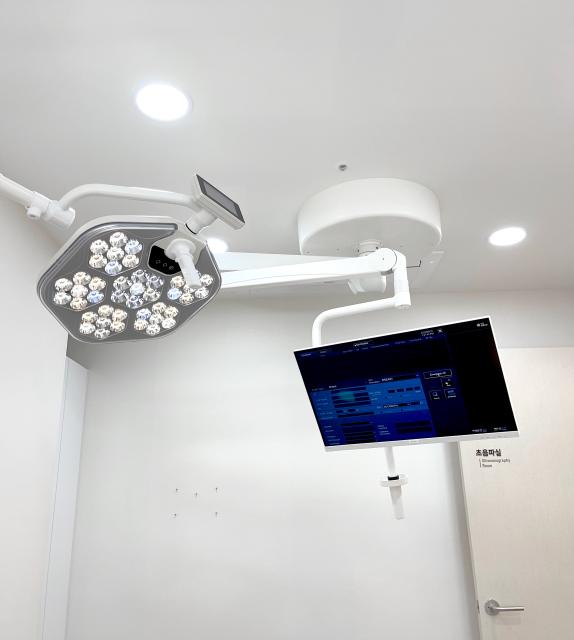

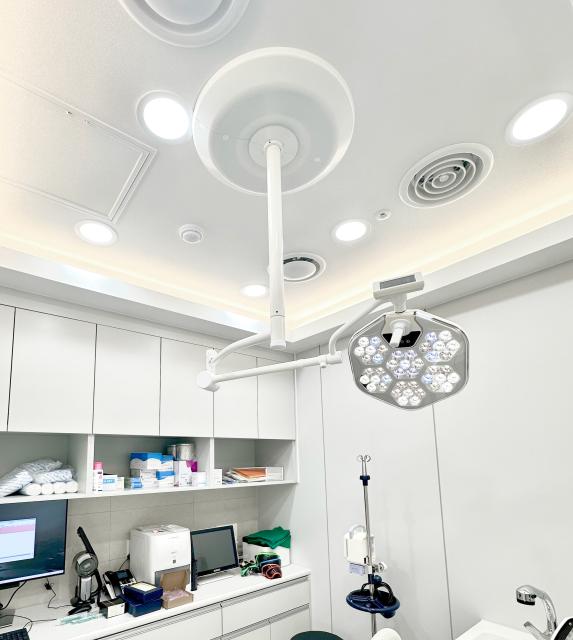

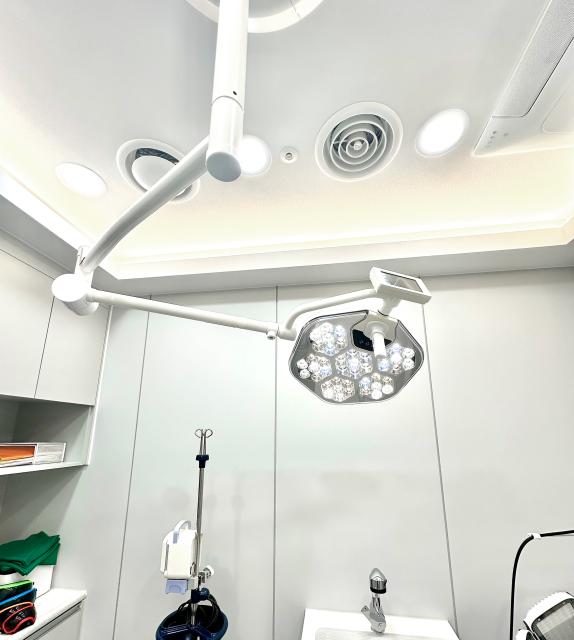

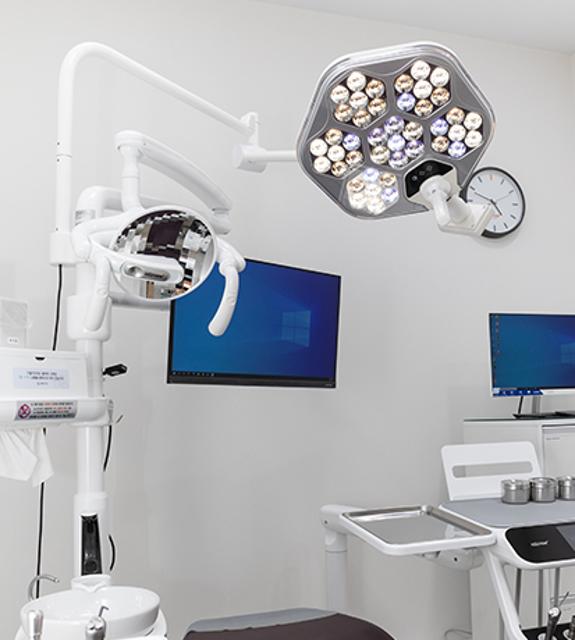

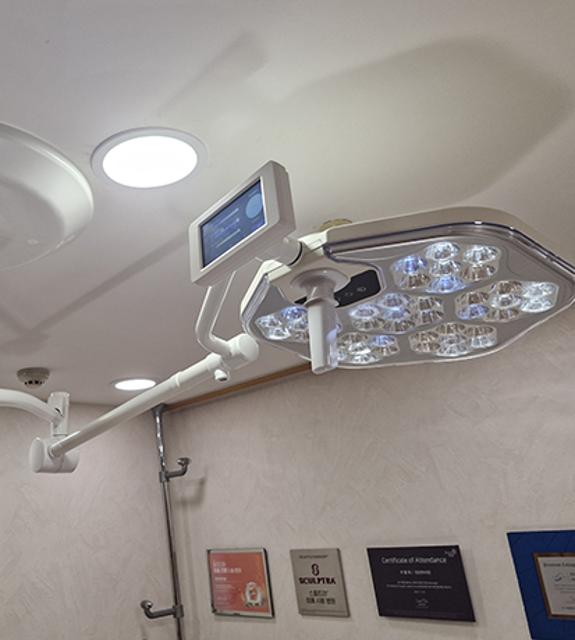

Installation Cases
Certifications & Approvals
Certifications (Awards)
Approvals
-

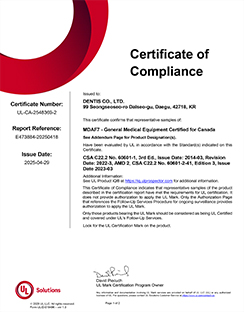

UL
-

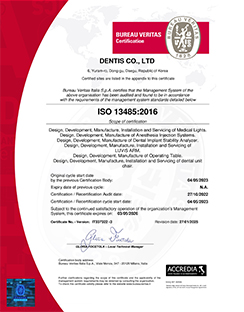

ISO 13485
-
IEC 60601-1
-
IEC 60601-1-2
-
IEC 60601-2-41
