EXAMINATION LIGHTS
-
-

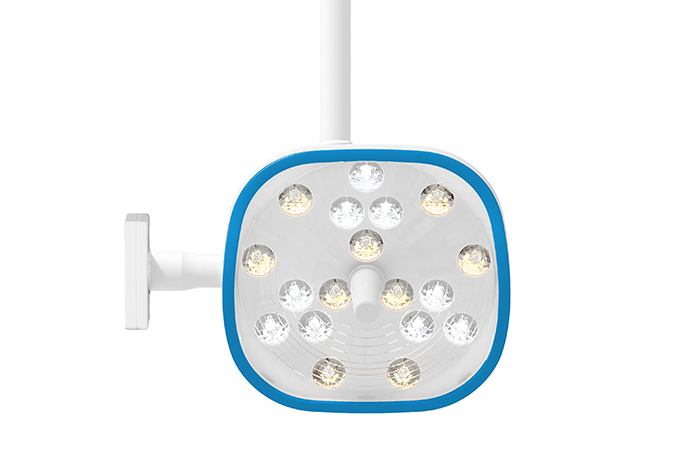

LUVIS S200
ESSENTIAL EXAMINATION LIGHTS FOR DAILY PROCEDURES
LUVIS S200 delivers reliable, versatile illumination for modern clinics.
Its intuitive controller allows easy adjustment of illumination, color temperature, and other settings, while the silent, fanless cooling system maintains optimal surgical conditions. Customizable light settings provide precise control for a variety of procedures and clinical environments.
Illumination Intensity
5 levels adjustment
(Max. 100,000lx)
Light Field Diameter
Selectable focal size(18cm/30cm)
by rotating main handle
Color Temperature
3,800K/4,300K/4,800K
Color Rendering Index
Ra 90
Key Features
-

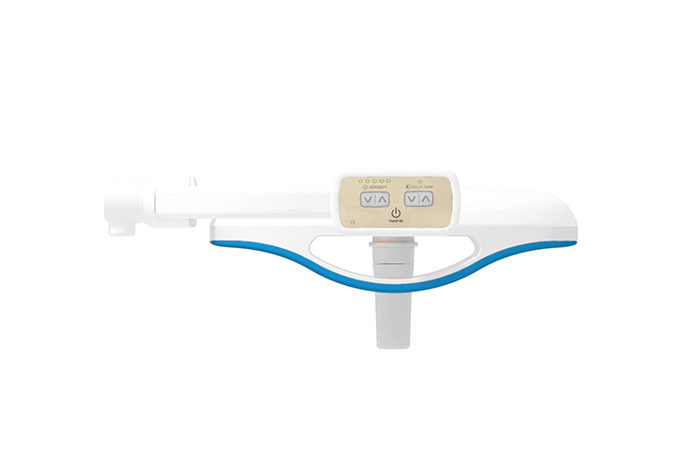

- EASY CONTROLLER ADJUSTMENT
- Simple and intuitive controller allows adjustment of illumination, color temperature, and other settings for precise control
-
- SILENT COOLING SYSTEM
- Fanless cooling ensures noiseless operation while minimizing heat and light-induced drying, helping maintain optimal surgical conditions
-
- AUTOCLAVABLE AND REUSABLE HANDLE
- Sterilizable and reusable handle ensures safety and supports eco-friendly practices
-
- CUSTOMIZABLE LIGHT SETTINGS
- Adjustable color temperature, field diameter, and illumination to suit various procedures and clinical environments
Install Type
Single Ceiling

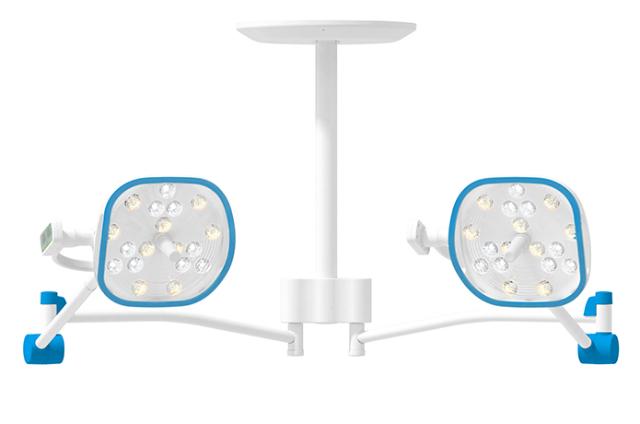

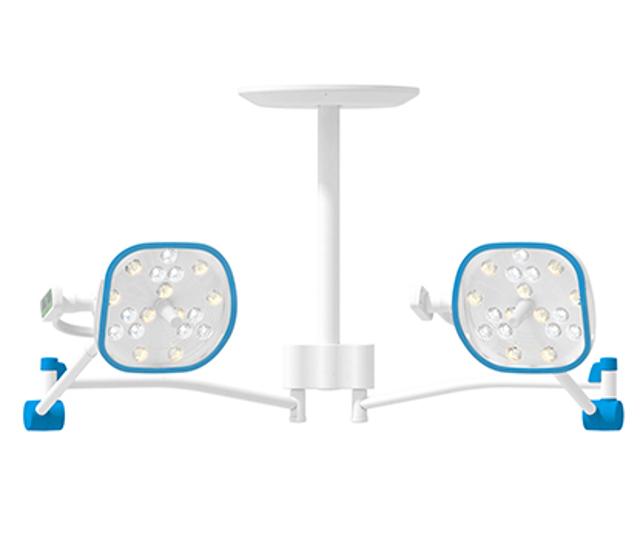

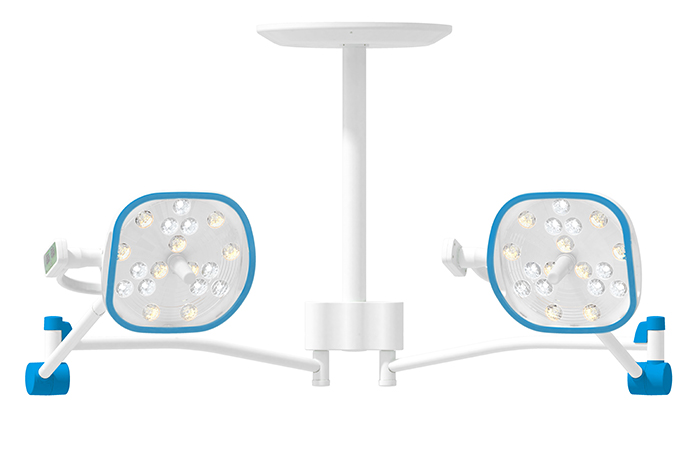

Dual Ceiling Mounted Surgical Light
Mobile Surgical Light
Wall Mounted Surgical Light
Chair Mounted Surgical Light
Key Specifications
| Contents | Description |
|---|---|
| No. of LED (ea) | 18 |
| Central Illumination Ec (lx) | 100,000 |
| Electronic Adjustment Range (%) | 5-100 |
| Color Temperature (K) | 3,800/4,300/4,800 |
| Color Rendering Index (Ra/R9/R13) | 90/80/95 |
| Light Field Diameter (d10, cm) | 18/30 |
| Light Field Diameter (d50, cm) | 9.5/16.5 |
| Depth of Illumination at 60% (cm) | 78 |
| Life Span (Hr) | 60,000 |

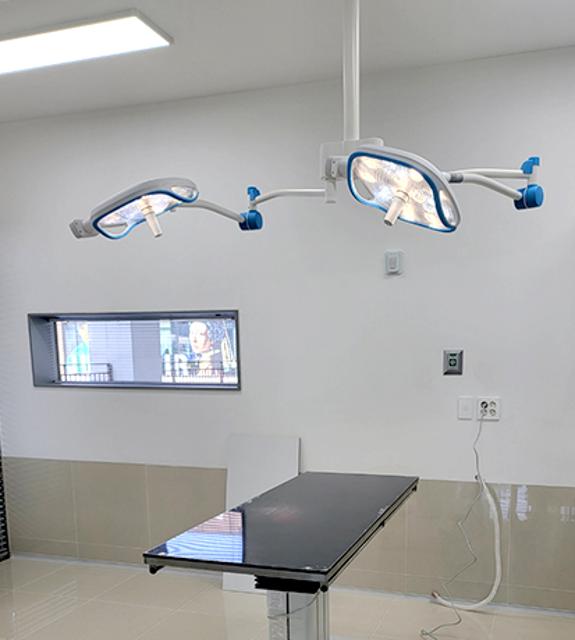

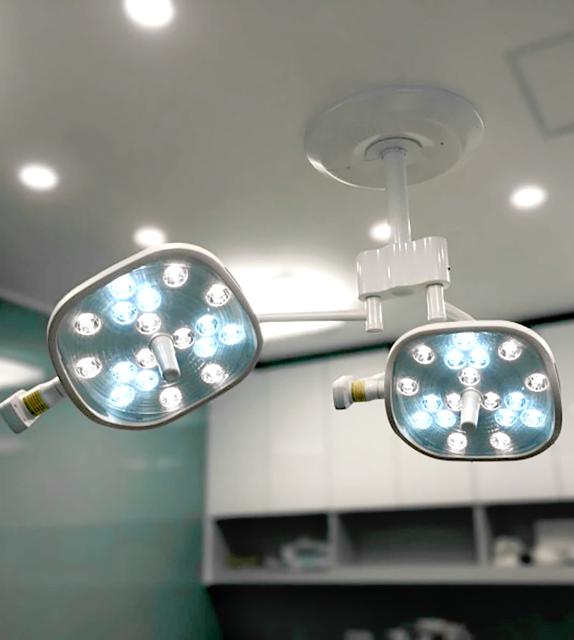

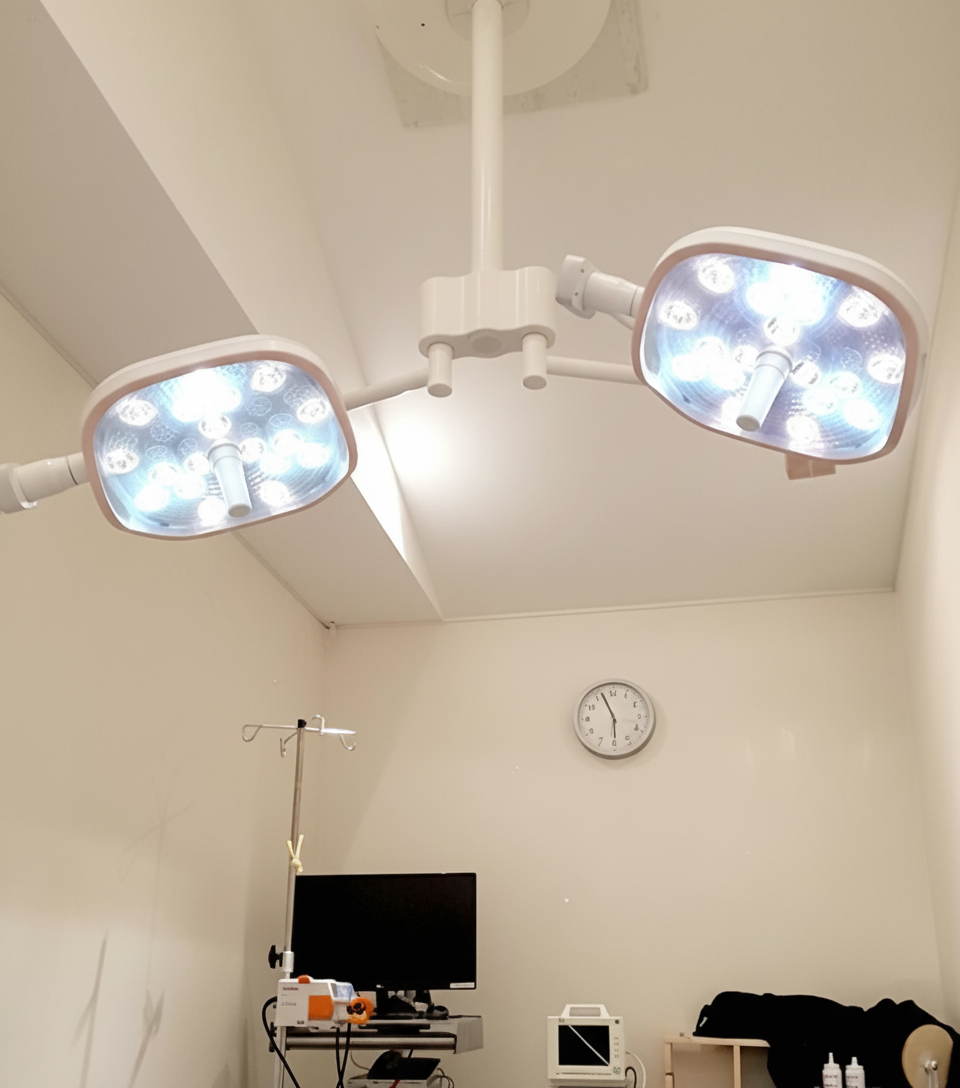

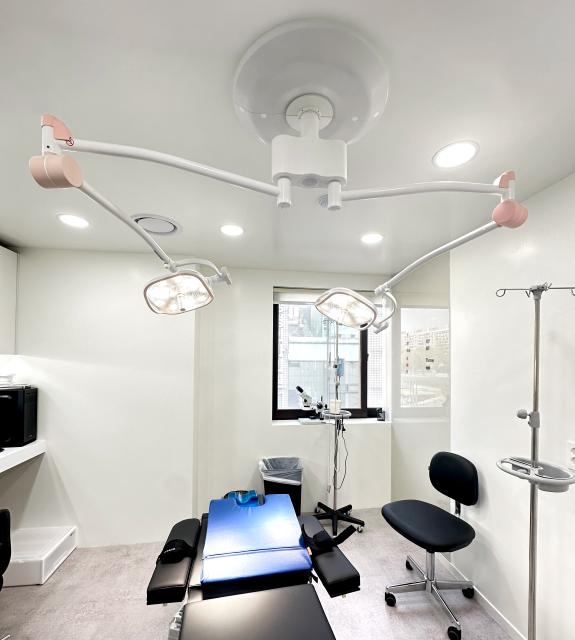

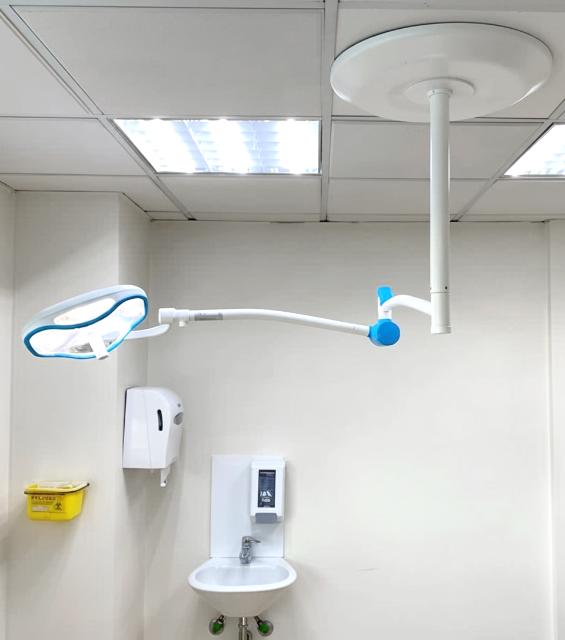

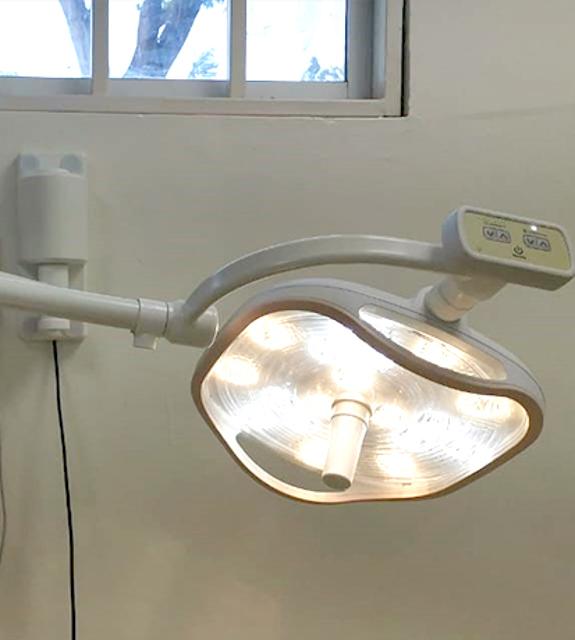

Installation Cases
Certifications & Approvals
Certifications (Awards)
Approvals
-
UL
-
ISO 13485
-
IEC 60601-1
-
IEC 60601-1-2
-
IEC 60601-2-41
