LUVIS C500
MULTIPLE & SMART DENTAL LIGHTS FOR EVERY CLINIC
LUVIS C500 is engineered to enhance workflow and safety in modern dental practices. Optional Full-HD camera integration supports live surgery, real-time viewing, and recording. One-touch resin mode combined with proximity sensors enables intuitive operation while minimizing the risk of cross-contamination.
Illumination Intensity
Max. 50,000lx
Light Field Diameter
16x9cm
Color Temperature
4,000K/4,500K/5,000K
Color Rendering Index
Ra 95
4K/FULL HD camera
Recording & Capture control
Key Features
-

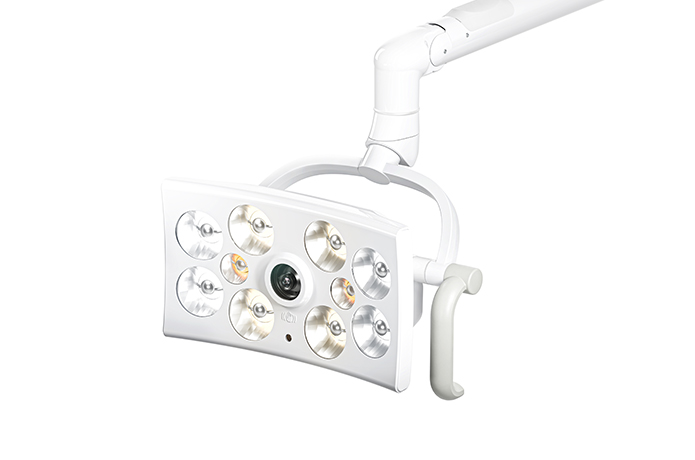

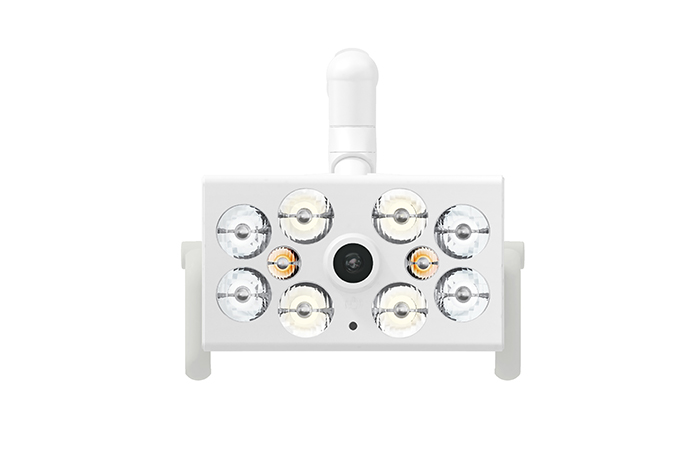

- 4K/FULL-HD CAMERA INTEGRATION
- Supports optional 4K/FULL-HD camera for live surgery, real-time viewing, and recording
-
- ONE-TOUCH RESIN MODE
- Allows mode selection with a single touch and light adjustment via the touch control panel for quick and intuitive operation
-
- PROXIMITY SENSOR
- Automatically turns off the light when within 2 cm proximity, helping prevent cross-contamination in the surgical environment
-

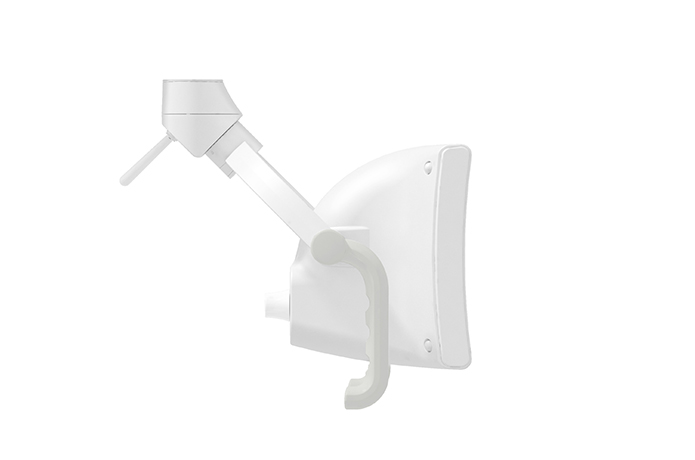

- DETACHABLE HANDLE
- Detachable handle ensures sterilization and hygienic use for safe clinical practice
Install Type
Chair Mounted Surgical Light
Wall Mounted Surgical Light

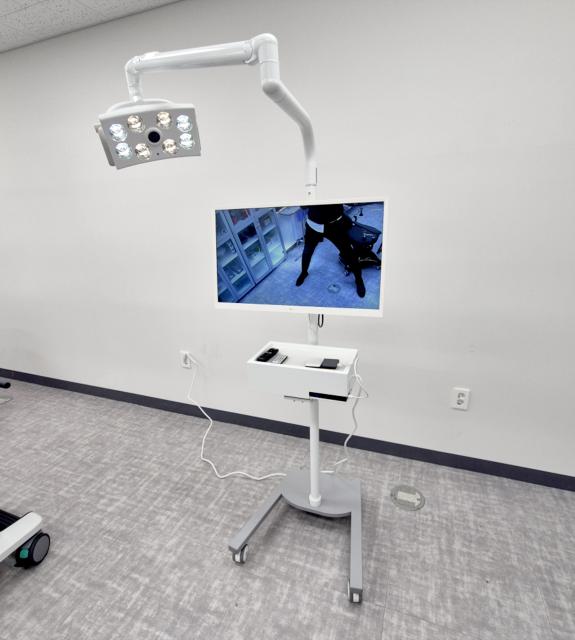

Mobile Surgical Light
Key Specifications
| Contents | Description |
|---|---|
| No. of LED (ea) | 10 |
| Central Illumination Ec_dental (lx) | 50,000 |
| Central Illumination Ec_resin (lx) | 10,000 |
| Electronic Adjustment Range (%) | 10-100 |
| Color Temperature (K) | 4,000/4,500/5,000 |
| Color Rendering Index (Ra) | 95 |
| Light Field Diameter (d10, cm) | 16x9 |
| Life Span (Hr) | 60,000 |

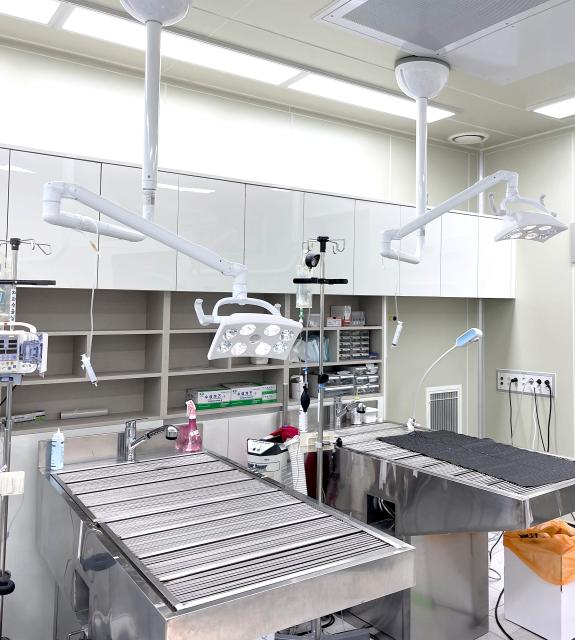

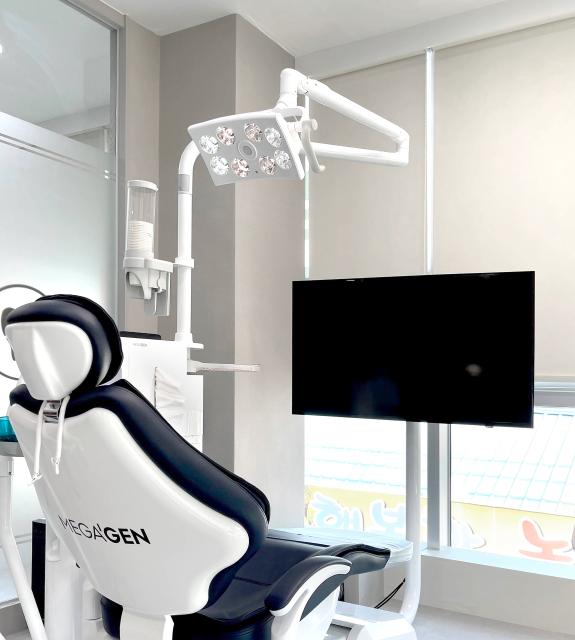

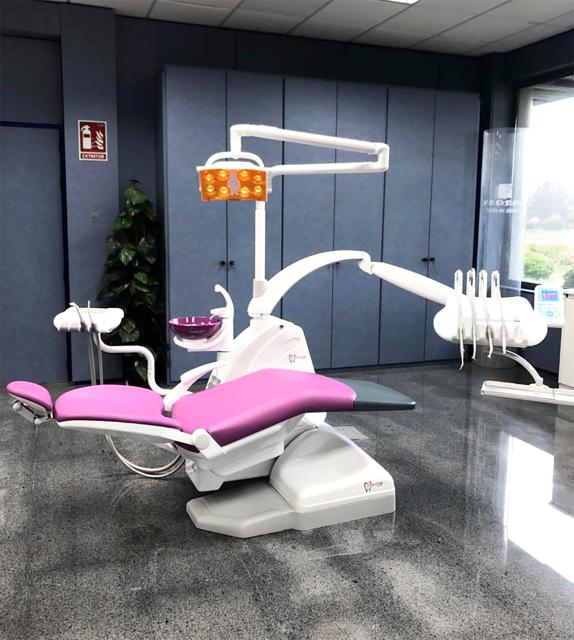

Installation Cases
Certifications & Approvals
Certifications (Awards)
Approvals
-
UL
-
ISO 13485
-
IEC 60601-1
-
IEC 60601-1-2
-
ISO 9680
-
IEC 80601-2-60
