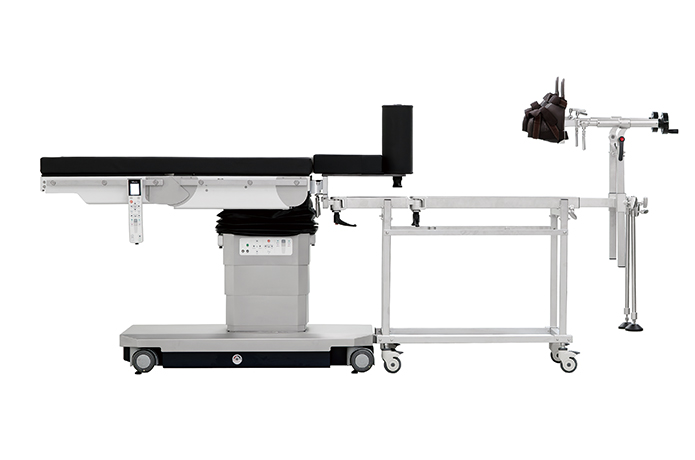

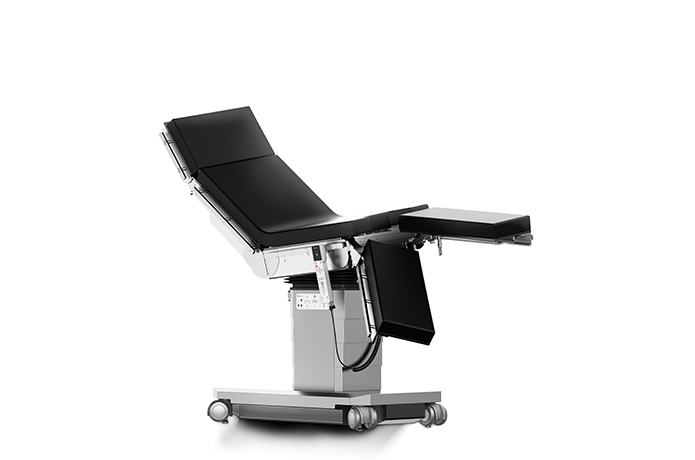

LUVIS ST500 SERIES
INNOVATIVE OPERATING TABLES, ENGINEERED FOR THE MODERN OPERATION ROOM
LUVIS ST500 SERIES is engineered for optimal surgical environments, providing versatile positioning to support a wide range of procedures. Its advanced design ensures clinician convenience and patient safety, while maximized C-arm coverage enhances imaging efficiency and surgical versatility

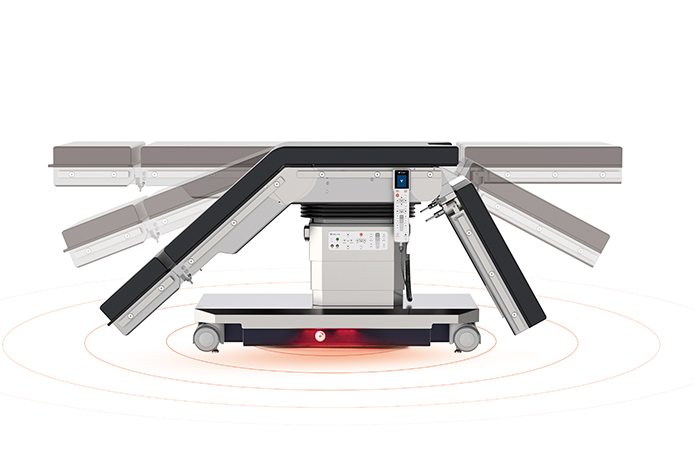

Smart Anti-Collision
LCD Remote Controller
(Display Realtime Information)
Pre-Programmed Memory Position
LED Alarm System
(Lock/Unlock/Limit)
Four 360° Swivel Casters
Key Features
-
- DESIGNED FOR OPTIMAL SURGICAL ENVIRONMENT
- Ensures surgeon convenience and patient safety through advanced features and reliable performance
-

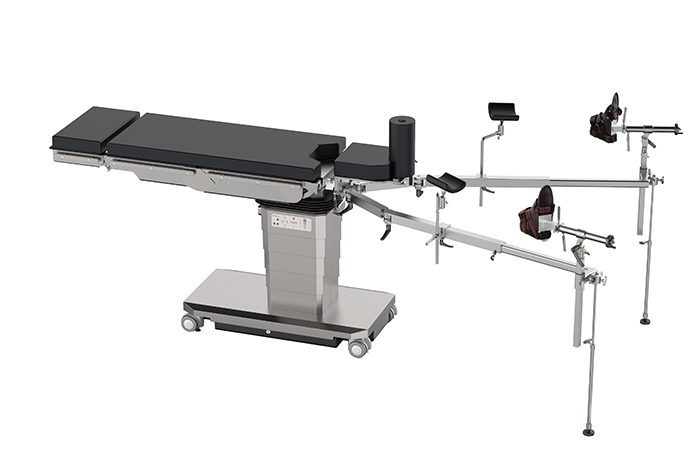

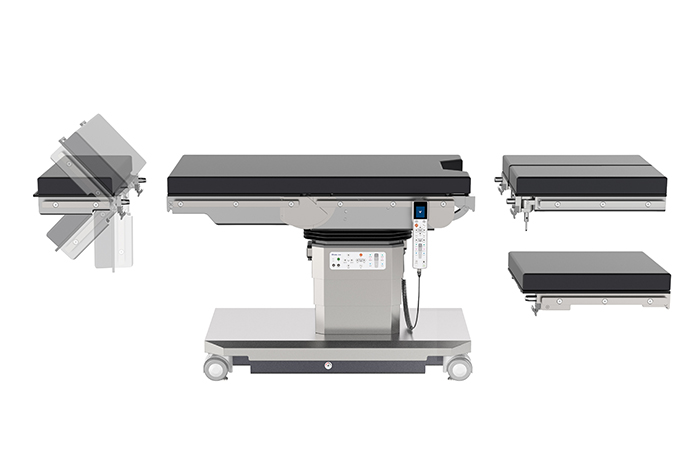

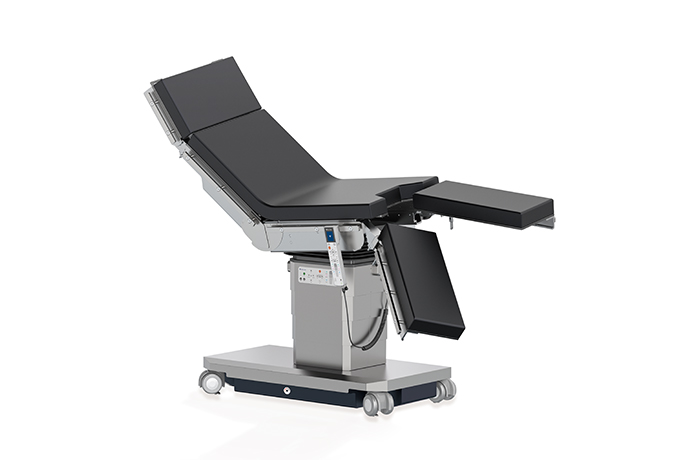

- VERSATILE SURGICAL POSITIONING
- Flexible to accommodate a wide range of surgical positions
-

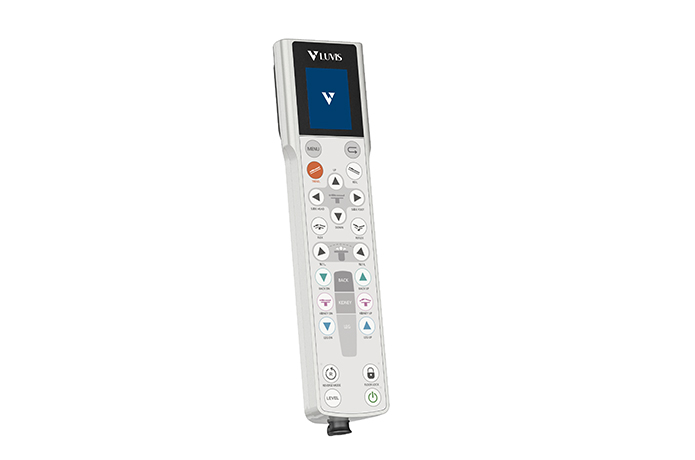

- SMART REMOTE CONTROLLER
- Ergonomic LCD controller allows simple patient positioning with instant table data, while the anti-collision system ensures safety
-

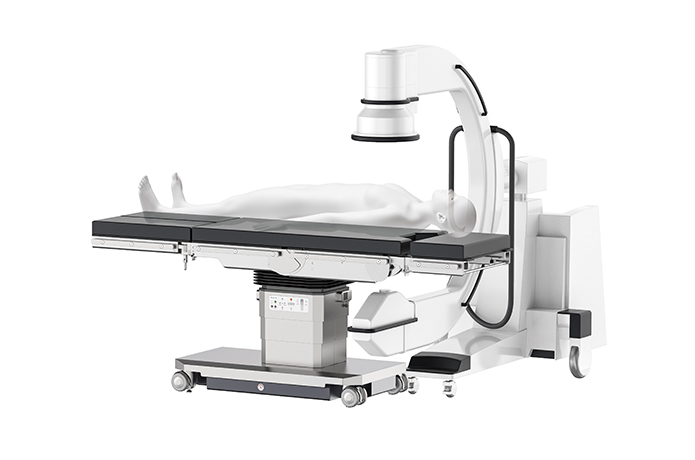

- MAXIMIZED IMAGING COVERAGE
- Maximized C-arm coverage through reverse mode for improved imaging efficiency and surgical versatility
Key Specifications
| Contents | ST500 | ST500E |
|---|---|---|
| Maximum Overall Load *patient and accessories |
|
|

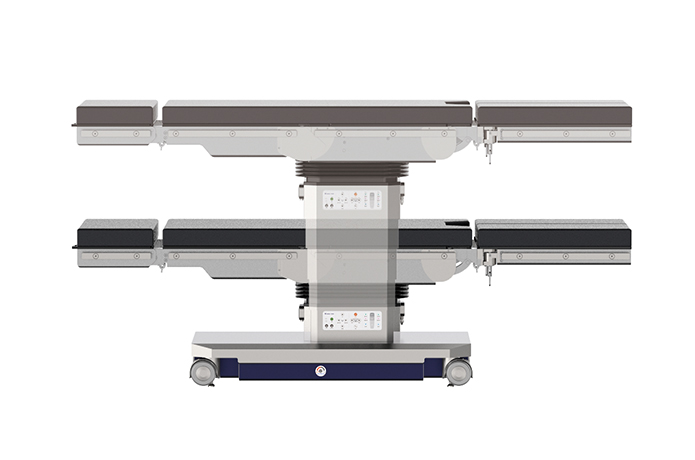

| Height Without Padding (mm) | 580-1,080 | 580-1,080 |
| Trendelenburg / Reverse Trendelenburg (°) | 30/30 | 30/30 |
| Lateral Tilt (°) | 20/-20 | 20/-20 |
| Back Section (°) | 90/-40 | 90/-40 |
| Leg Section (°) | 10/-90 (2plates) ＊manual | 0/-105 (1plate) |
| Headrest (°) *manual | 45/-45, 30/-90 | 45/-45, 30/-90 |
| Longitudinal Slide (mm) | 460 | 460 |

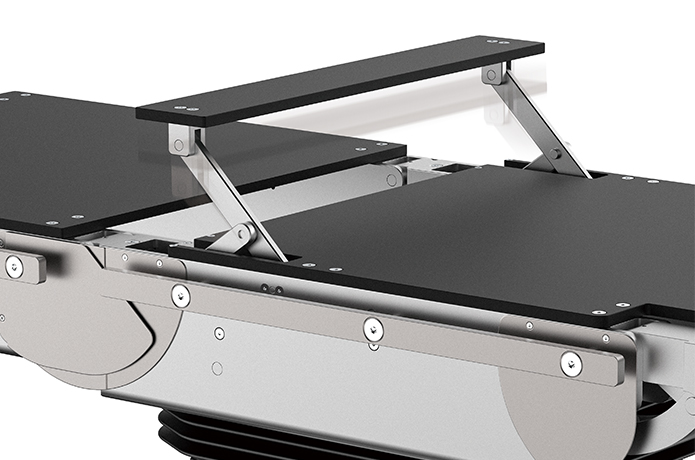

| Kidney Elevator (mm) | 110 | 110 |
| Flex / Reflex (°) | 140/90 | 140/90 |

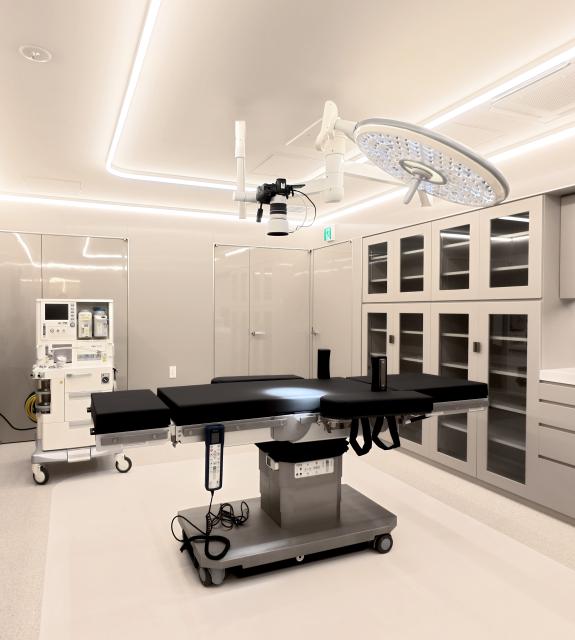

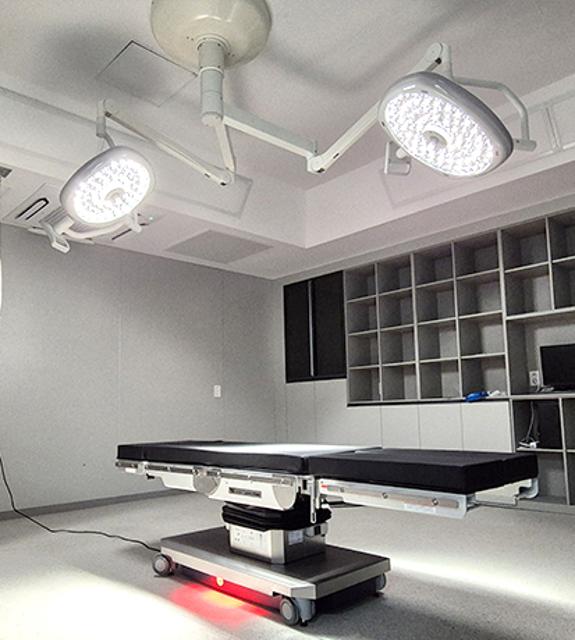

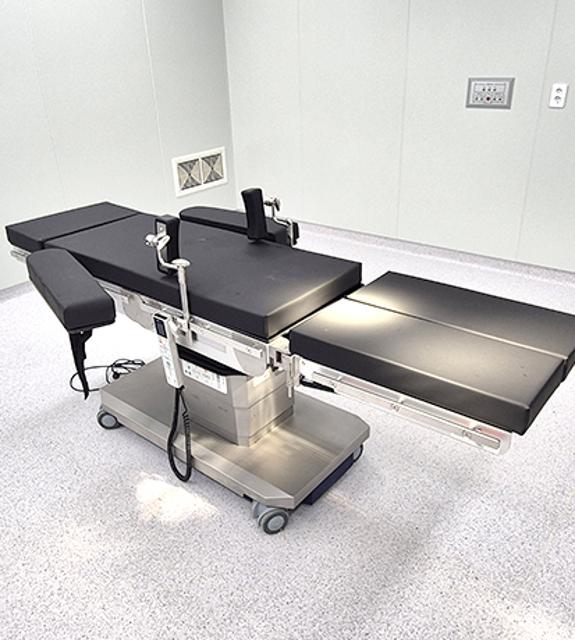

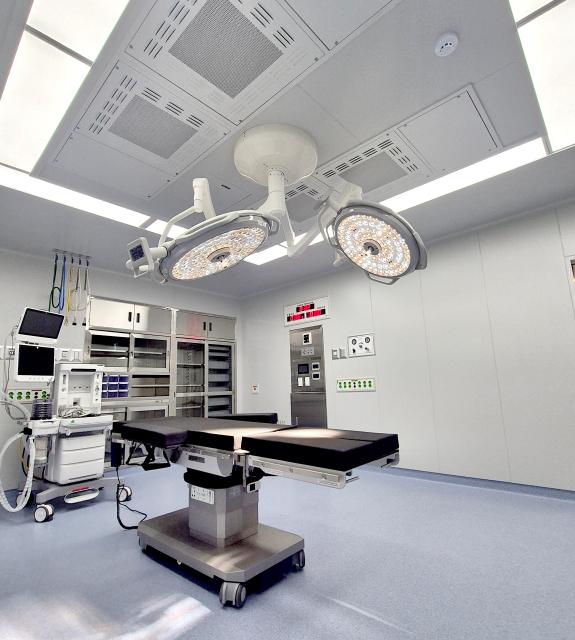

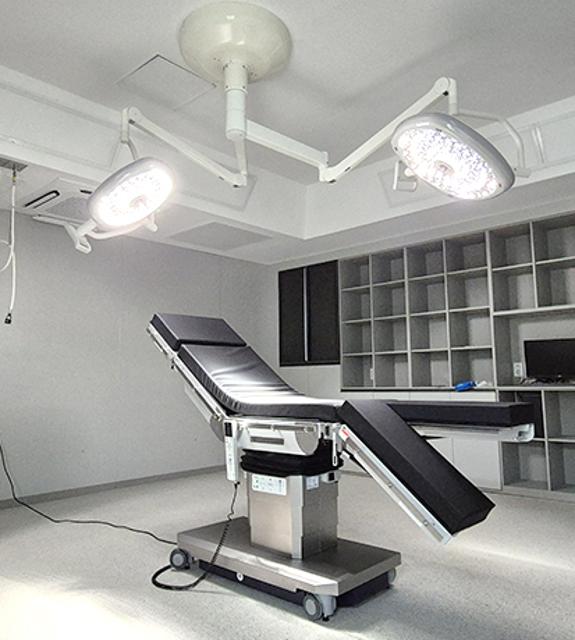

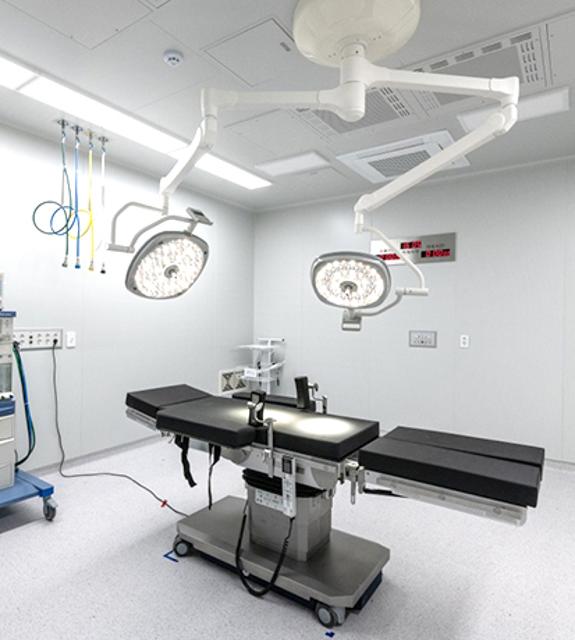

Installation Cases
Certifications & Approvals
Certifications (Awards)
Approvals
-
UL
-
ISO 13485
-
IEC 60601-1
-
IEC 60601-1-2
-
IEC 60601-2-46
