SUSPENSION ARM
-
-
LUVIS SA300
PRECISION IN MOTION, STABILITY IN EVERY POSITION
LUVIS SA SERIES delivers controlled movement with uncompromised stability, supporting precise positioning throughout surgical procedures.
Its engineered joint system ensures accurate alignment and secure payload support, keeping devices exactly where clinicians need them.
The consistent balance and smooth articulation allow effortless adjustments, enhancing workflow efficiency and maintaining reliable performance in the operating room.
Key Features
-
- STABLE, NON-ROTATING DISPLAY
- Maintains a fixed display orientation during arm height and light head adjustments, preventing disorientation and ensuring intuitive operation throughout surgery
-
- LCH WS : Dual-Axis Camera Integration

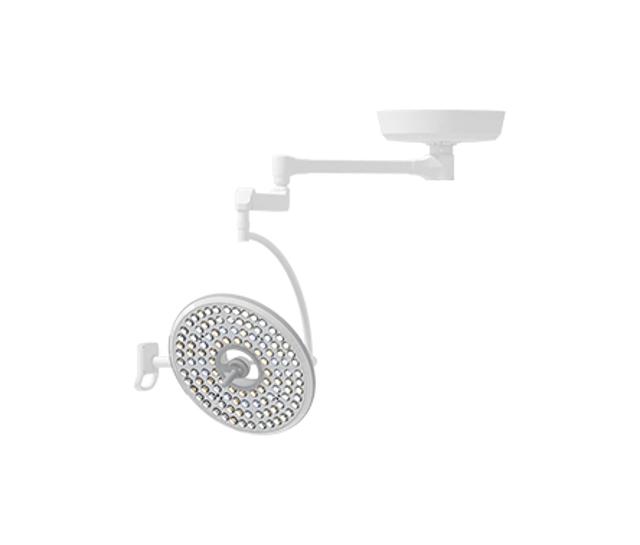

- Equipped with a dual-axis camera system, allowing camera-type surgical lights to be installed even in low-ceiling operating rooms
-
- Easy Angle & Tension Adjustment
- Clear markings enable quick and intuitive angle and tension adjustments. Angle adjustment is possible without removing the cover
-

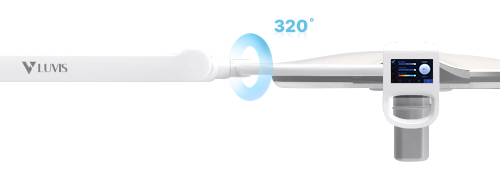

- 360° ROTATABLE ARM WITH CONSISTENT CONTROL (OPTION)
- Enables full 360° arm rotation for free positioning from any angle while maintaining consistent control and a stable visual reference
-
- WIDE VERTICAL TILT RANGE
- Provides a wide vertical tilt range from -70° downward to +10° upward, ensuring clear visibility for medical staff and supine patients from multiple viewing positions

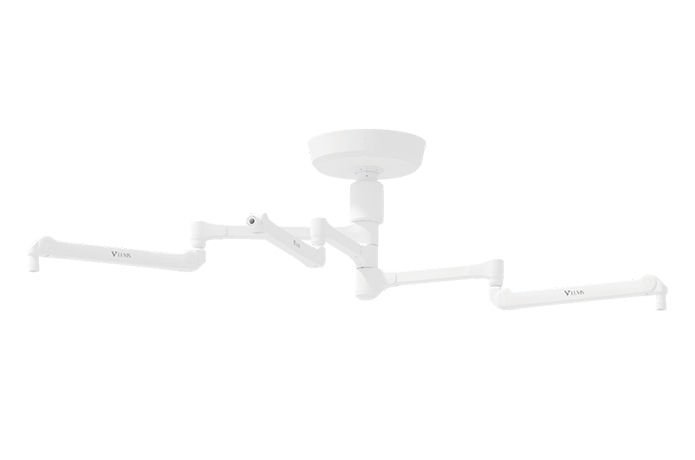

Install Type
Single Arm

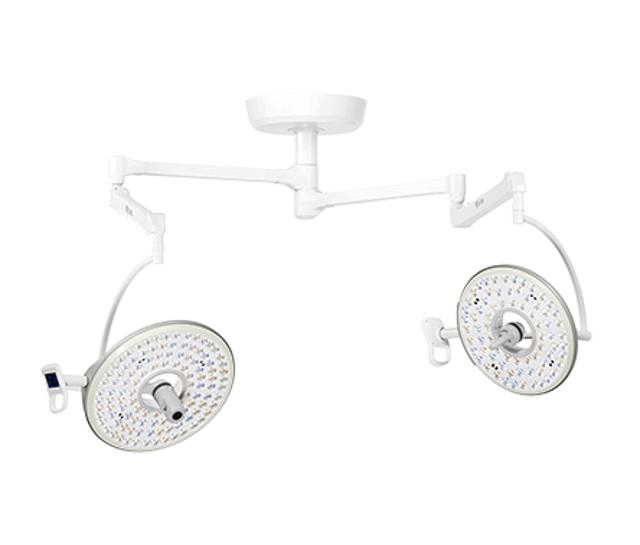

Dual Arm

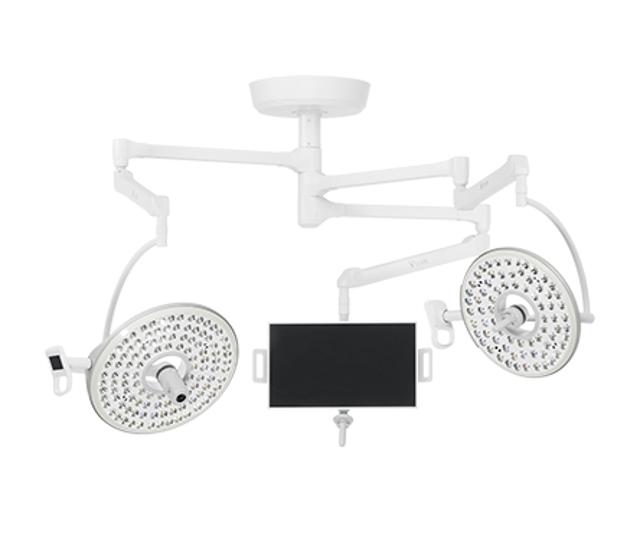

Triple Arm
Key Specifications
- Ceiling-Mounted
- Central Axis
Central Axis Type Arm Length (mm) Weight (kg) Electric (Vac/Vdc/Max.A) Ceiling Canopy (mm) Color Rotate Angle (°) 1 Fold 850 12 3P : slip ring
100-240/28/10Φ600x150 RAL 9010 3P : 360
WS : 3202 Fold 700/850 19 3 Fold 700/850/1,000 31 Hybrid 1 Fold 1,650 16 Hybrid 2 Fold 1,500/1,650 30 (Abbreviations) WS: With Stop
- Spring Arm
Spring Arm Type Arm Length (mm) Weight (kg) Electric (Vac/Vdc/Max.A) Payload (kg) Payload (Nm) Color Rotate Angle (°) STD 900 8 3P : slip ring
100-240/28/105-9
9-15
14-21- RAL 9010 95 LCH 940 - 91-136

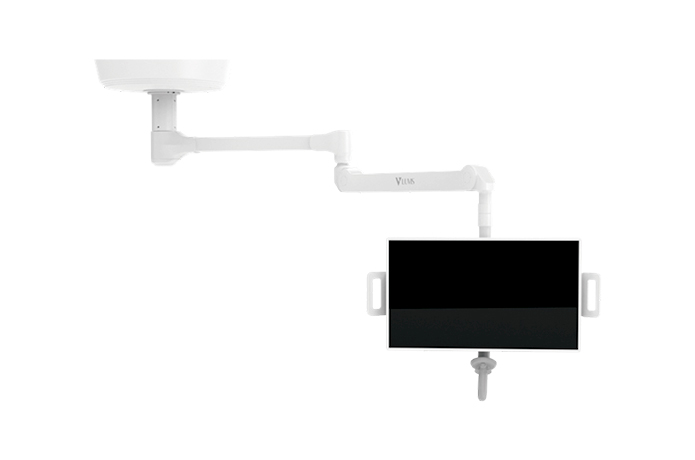

125-20480 - Monitor Bracket (accessory)
Monitor Bracket (accessory) Type Arm Length (mm) Weight (kg) Color Tilt Angle (°) Rotate Angle (°) Monitor Size (Max.inch/kg) Single 300 6 RAL 9010 Up: 10
Down: 703P : 360
WS : 32032/12 (Abbreviations) WS: With Stop
- Central Axis

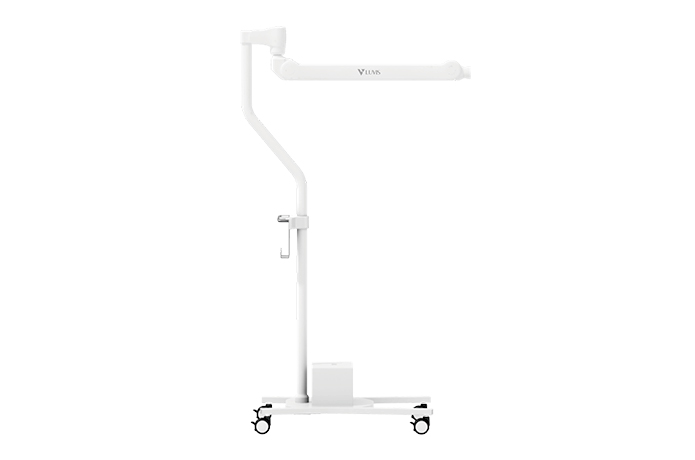

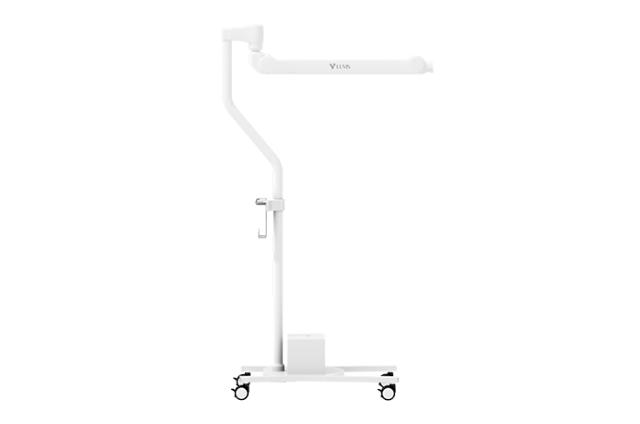

- Mobile
- Base
Monitor Bracket (accessory) Type Weight (kg) Electric (Vac/Vdc/Max.A) Color Rotate Angle (°) Basic 60
(only mobile parts)3P slip ring
100-240/28/10RAL 9010 30 Battery - Spring Arm
Monitor Bracket (accessory) Type Arm Length (mm) Weight (kg) Electric (Vac/Vdc/Max.A) Payload (Nm) Color Rotate Angle (°) LCH 940 8 3P : slip ringB
100-240/28/1091-136
125-204RAL 9010 80
- Base
Certifications & Approvals
Certifications (Awards)
Approvals
-

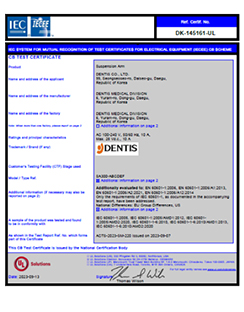

CB
